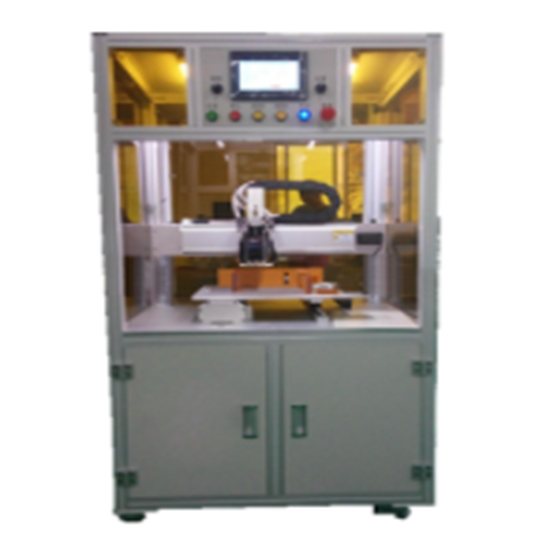

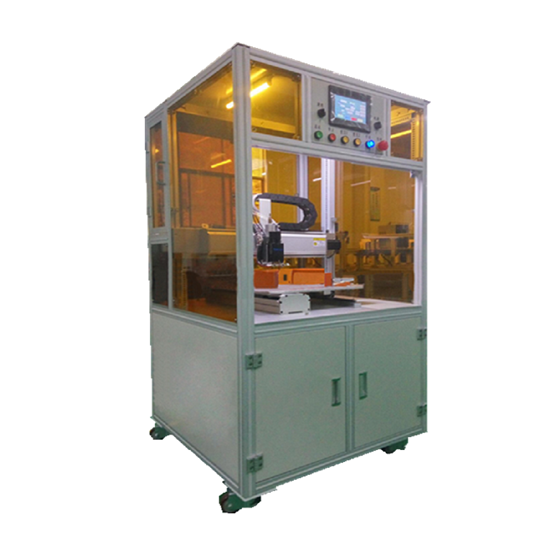

CNC Automatic 5000A/8000A Single Side Battery Tab Spot Welding Machine for Cylindrical Battery Pack Welding

INTRODUCTION

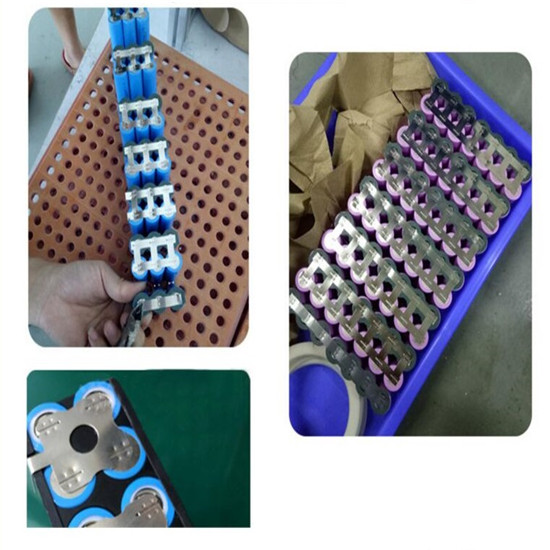

This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding.

1.Support breakpoint start, support automatic start and manual start mode conversion.

2.It has a false spot welding and out of spot welding alarm function.

3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.

4.Welding needle replacement forecast reminder.

5.Own welding current monitoring system, real-time monitoring of welding current.

We can also offer CNC welding machine. Welcome your inquiry to us for more details.



SPECIFICATION

Model	TMAX-DH-10000
X-axis travel	380mm
Y-axis travel	540mm
Spot welding speed	0.5s / point; 1600pcs / h
Maximum speed of motor drive	1000mm/s
The maximum number of batteries loaded	300pcs (standard 18650 lithium battery)
Number of groups for storing files	99 groups
Operating system	Embedded system + man-machine screen
Transmission	Stepper + imported precision linear guide (optional servo + screw)
Power supply	Single-phase  220V ± 10% / 50Hz ± 10%
Power	<500w
Air supply	0.3 ~ 0.4Mpa
Weight	200KG
Dimensions	About 1000mm*1000mm*1800mm
