Lithium Battery Assembly Machine

/

Pouch Cell Forming Machine

/Automatic Aluminum Laminated Film Case/Cup Forming Machine for Li ion Battery

Automatic Aluminum Laminated Film Case/Cup Forming Machine for Li ion Battery

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-ZDCK
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Automatic Aluminum Laminated Film Case/Cup Forming Machine for Li ion Battery

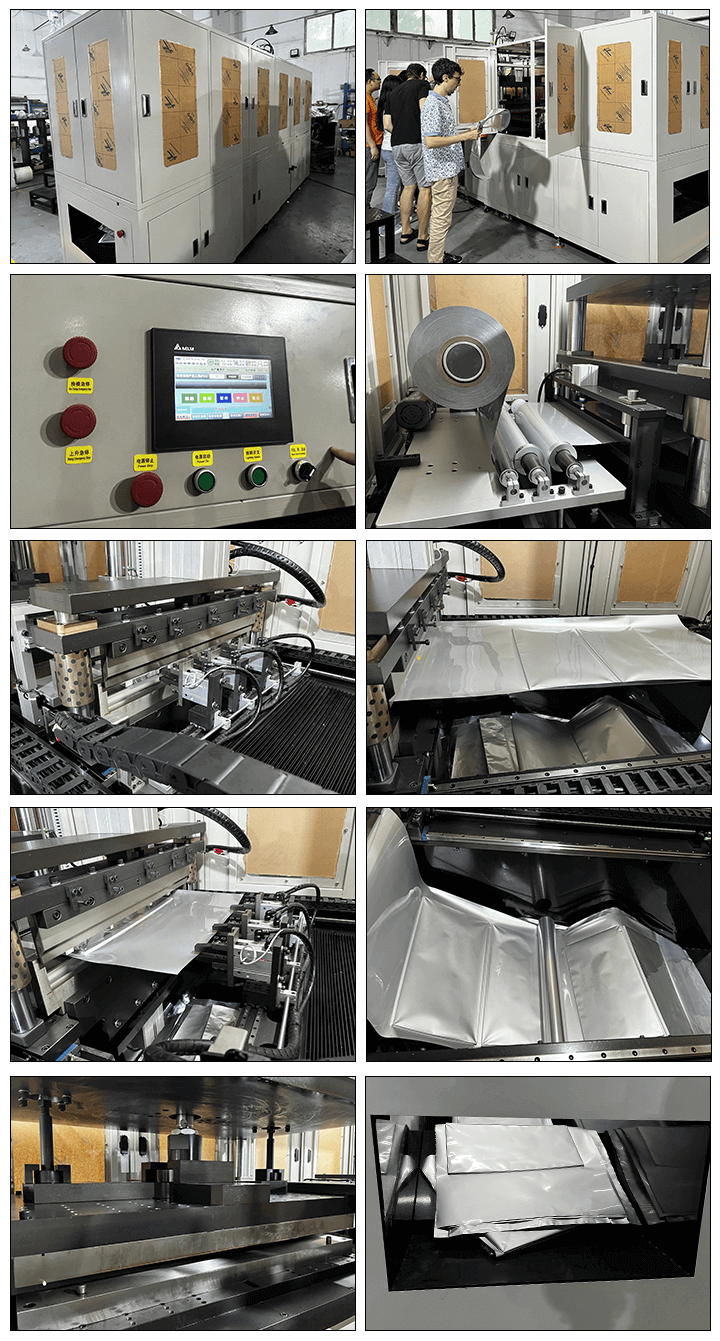

This machine is mainly used for forming aluminum laminated film of pouch cell case/cup. The upper stamping adopts 10t booster cylinder and the lower stamping adopts servo motor drive. Adopt mechatronics control, PLC and servo motor to precisely control the depth of hedging shell, and use touch screen to set, adjust and operate relevant parameters. Thus makes the machine equipment operation simplification, the accuracy is higher! Equipped with safety light curtain, access switch, double button start switch, safe, convenient, efficient, long service life; customers can provide their own mold, stamping various types of battery aluminum laminated film, to meet the process requirements.


1.1 Upper stamping part

1.1.1 the upper stamping is driven by servo electric cylinder, with stamping stroke of 90mm and working stroke of 10-80mm adjustable.

1.1.2 the pressing force is adjusted by inputting the pressing force through the touch screen, and the theoretical pressing force is 5T.

1.1.3 during manual operation, the maximum adjustable height of upper and lower formwork is 80mm (convenient for cleaning and replacing the formwork);

1.1.4 the stamping part is precisely positioned by four linear bearings and driven by the high-frequency wear-resistant guide rod to move the upper pressing plate repeatedly.


1.2 lower stamping part

1.2.1 it is driven by 1.5KW servo motor connected with 10:1 high-precision planetary reducer, and the connection part adopts 5mm pitch and 40mm diameter high-precision screw rod;.

1.2.2 the positioning adopts φ 28mm high-precision dense steel ball guide post, which cooperates with the guide sleeve to operate repeatedly.

1.2.3 the three die can adjust the punching depth by inputting the punching depth value on the touch screen, and the stroke is adjustable from 1 to 20 mm.

1.2.4 theoretical stamping output 2 tons.


1.3 mold part

1.3.1 three piece mold, according to customer requirements (this machine does not include mold)

1.3.2 module shell process shall be provided for mold order, and relevant parameters in the table below shall be filled in. The mold shall be made strictly according to the process.


1.4 rack part

1.4.1 the lower frame is made of square welding, and the surface is painted with computer white paint. The upper frame is composed of safety door, operation panel, door panel and aluminum profile.


1.5 circuit part:

1.5.1 the circuit part is composed of PLC, touch screen, solenoid valve, intermediate relay, grating, access control switch, etc. Through touch screen, man-machine dialogue is carried out, and security protection is carried out by grating and access control.


2.Specifications

Rated power

2.5KW

Frame

Surface pickling, default computer white paint (according to customer requirements) treatment

The upper and lower frames are all made of aluminum profiles;

The door opening of the upper rack adopts the access switch protection device to ensure safety

Machine capacity

20pcs/min(depends on the size of aluminum laminated film and the proficiency of worker)

With capacity counting function

Main steel members

45#steel, Hard chrome plating

Thickness of upper and lower platens

40mm

Effective working area

350*500mm(customizable)

Cutter width

250mm

Punching depth

10mm(single punch)

Effective stroke of lower servo stamping

20mm

Equipment utilization rate

95%

Product qualification rate

99.5%

Appearance size

1920mm(L)*700mm(W)*2000mm(H)

Total weight of equipment

1000KG
