Hot Press Forming Machine for Pouch Cell Case Battery Lab Research

Wechat:17720812054

Skype and Whatsapp:+8617720812054

Email:Beata@batterymaking.com


  • Item NO.:

    TMAX-CX
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    In stock
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Hot Press Forming Machine for Pouch Cell Case Battery Lab Research

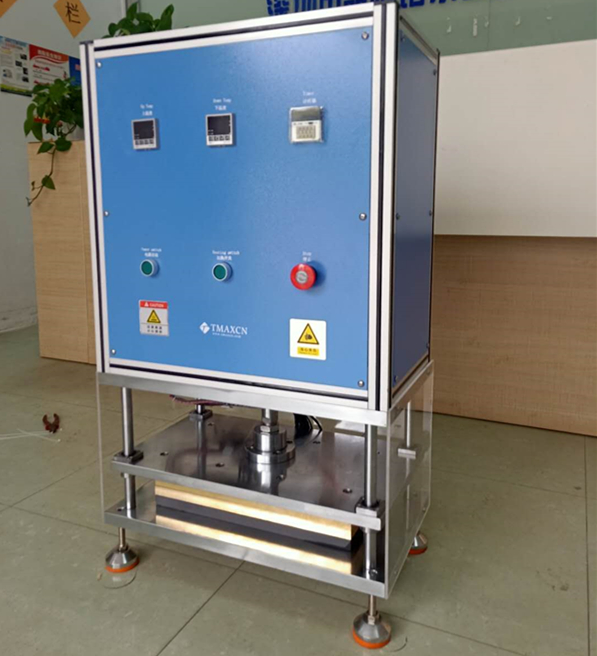

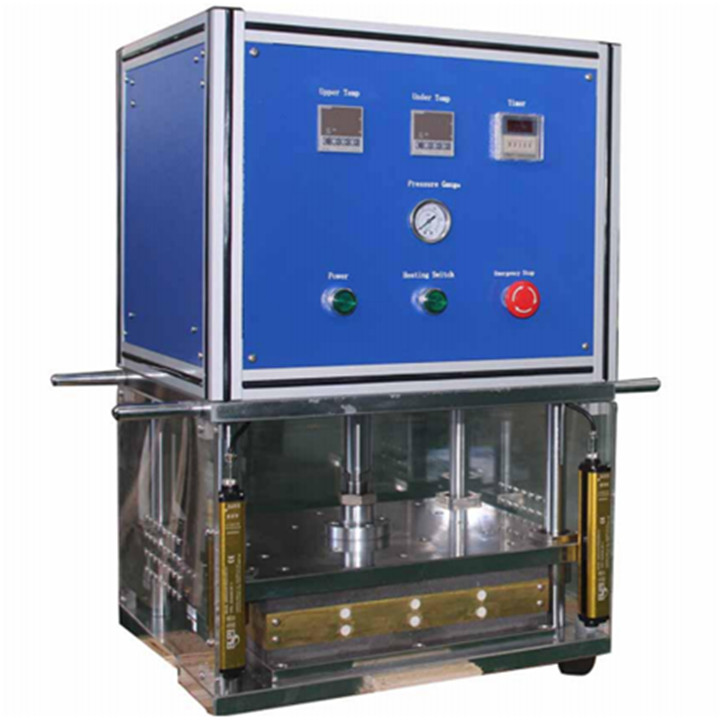

TMAX-RY200 Hot press machine is mainly used for battery core hot press shaping after winding process, easy for battery core into the pouch or shell.
Using the hot press shaping machine after battery Winding On the template by pressure and heat to reduce batteries thickness with finalize design, reducing the battery core short circuit rate and ensure the consistency of the thickness of the finished batteries

Model

Hot Press Machine TMAX -RY200

Source voltage

AC 220V/110V, 50/50HZ

Power

2000W

Warranty

One year limited warranty with lifetime support

Structure

The LCD display shows Temperature

Using light curtain protection device, guarantee security

With abnormal temperature alarm function

Hot-pressing time, temperature, pressure can be adjusted

Use automatic and semi-automatic control, easy to operate

Air source

0.5-0.8MPa

Hot press area

200*200mm

Heating TEM

RT-250℃, adjustable

TEM accuracy

±2℃

Pressure

1T adjustable

Dimension(L*W*H)

350*320*550mm

Weight

About 90kg


Pouch cell Pilot machine
