Automatic Electrolyte Filling Machine with High Productivity

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-AFMY-200
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

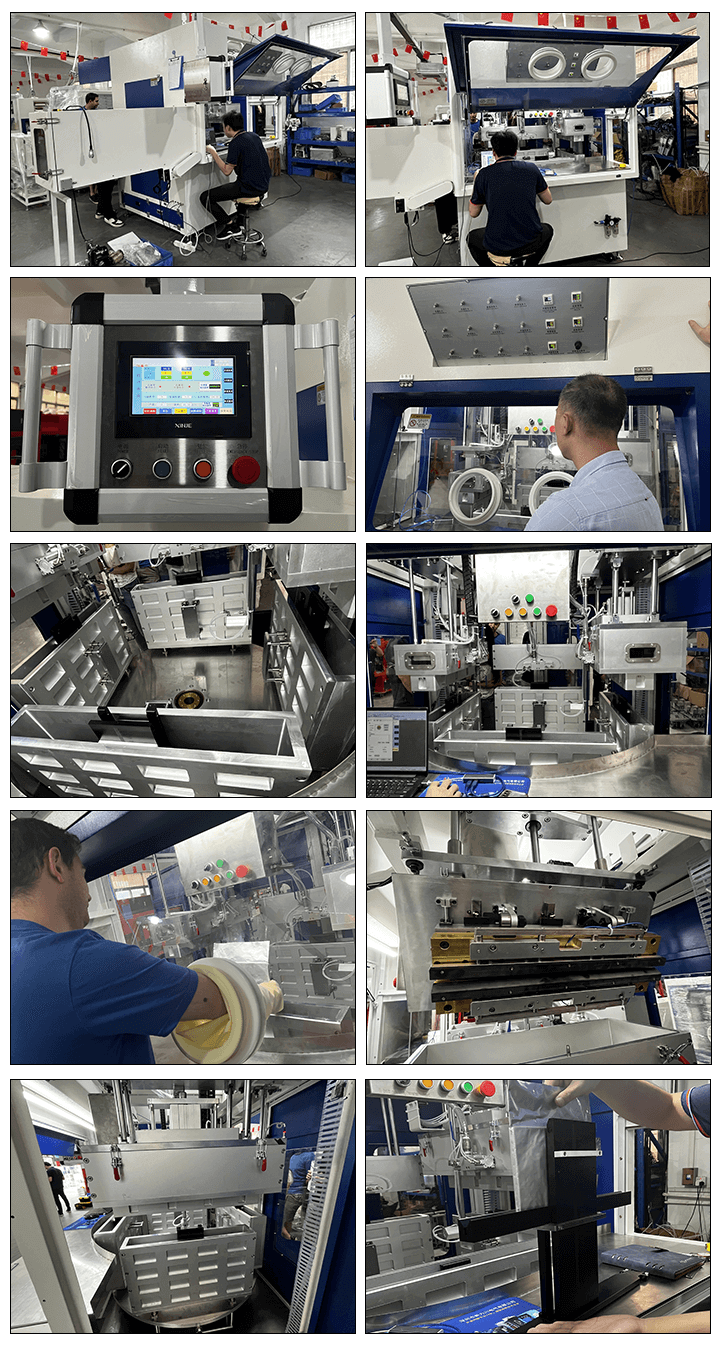

Automatic Electrolyte Filling Machine with High Productivity



     SPECIFICATIONS

Model

Automatic Battery Filling System TMAX-AFMY-200

Source voltage

AC220V, Single phase. Customized according country request

Power

10KW

Warranty

One year limited warranty with lifetime support

Compressed air

0.6MPa

Output

6ppm, according to vacuum holding and sealing time

Vacuum flow

350M3/hour

Suitable battery size

Length 130-285mm, Width 100-170mm, Thickness 8-11mm

 Structure configuration

 Trough body

3SET

Battery rotating mechanism

1SET

Automatic feeding mechanism

1SET

Weight before filling

1SET

Into the jig transfer institution

1SET

Pour institutions without electric pump

1SET

Vacuum holding box

3SET

Vacuum pre-sealing

1SET

Discharge transfer institution

1SET

Weight after filling

1SET

Automatic discharging device

1SET

Automatic receiving institutions

2SET

With PLC, Touch screen,



Driving motor

2SET

Project control system

1SET

CAM drive motor

2SET

Vacuum holding box

1-99s can be set, with -95kpa vacuum degree

Vacuum pre-sealing machine

Sealing stamp width : 8mm

Sealing head length : 300mm

Sealing TEM : Max 260°C, adjustable

Sealing Head parallelism : ±0.02mm

Vacuum degree : -90KPa

Dimension (L*W*H)

8000*1500*2400mm

Weight

4000kg



Electrolyte Filling Machine
