Automatic Lithium Polymer Battery Assembly Line

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-BAP-H
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Automatic Lithium Polymer Battery Assembly Line



Product Description

Main technical parameters

Performance

Battery length

55-140mm (±0.2mm)

Battery width

30-70mm

Total battery length

60-155mm

Battery thickness

2-10mm

Aluminum-plastic composite film

diameter

φ450mm

Aluminum-plastic composite film

thickness

0.11-0.2mm

Gas-liquid pressurized cylinder

10T

Punching servo

15KW

Source voltage

AC220V 9KW

Capacity

4-14pcs/min

Air supply

0.5-0.7Mpa 20L/S

Size (L*W*H)

3600*3200*2000mm

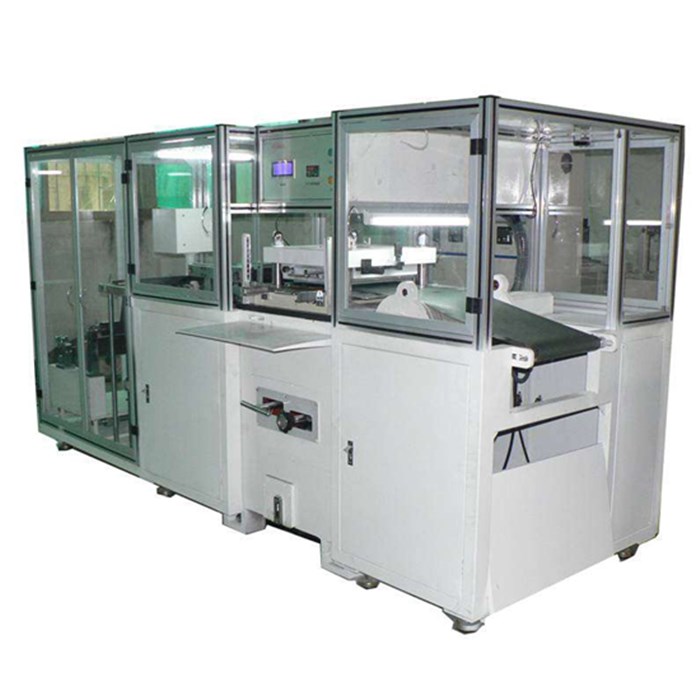

Pouch Cell manufacturing Plant
