Automatic Grooving Machine For Super Capacitor Shell

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-GC3060
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

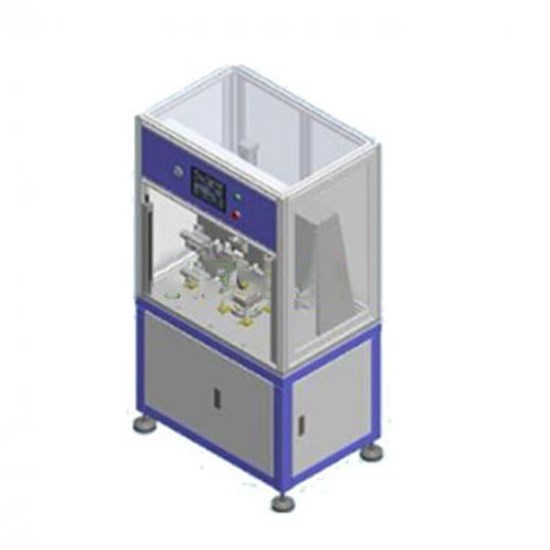

Automatic Grooving Machine For Super Capacitor Shell

SPECIFICATION

Automatic grooving machine is used for super capacitor shell auto grooving, Making the capacitor annular convex shell, convenient seal place, and increase the contact area. At the same time, casing convergent, convenient for next sealing.



Model

Automatic Grooving Machine For Super Capacitor   TMAX-GC3060

Working Voltage

110 - 240V AC, single phase 50/60HZ

Power

1000 W

Warranty

One Year limited warranty with lifetime support

Suitable capacitor

60system super capacitor, Can be customized

Air Pressure Requirement

0.5 - 0.7 MPa, adjustable (Air Compressor is not included)

Product Dimensions

620mm(L)*520mm(W)*1360mm(H)

Weight

250kg


PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.

5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.


SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.
