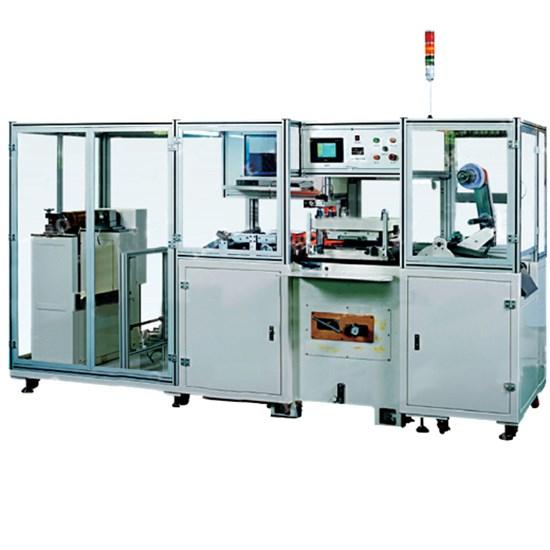

Automatic Pouch Cell Battery Electrode Die Cutting Machine

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-A-005
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Automatic Pouch Cell Battery Electrode Die Cutting Machine




Functions
 Apply laminated technology gap or continuous coated sheet die cutting, stacked process;
 Raw material by rolling, floating roll tension control, automatic correction action again after feeding, automatic die cutting molding marching by slices manipulator will automatically stacked plate to lift in the manger; Auxiliary transport by carrier with the whole process, and a carrier with single put single ended, deviation, tension cache, dust, and other functions; Leftover material is transported by the carrier belt to leftover material collection barrels.
 Slitting tool apron: novel 110 tool apron, Φ110 blades, repeatedly polished upper and lower blades

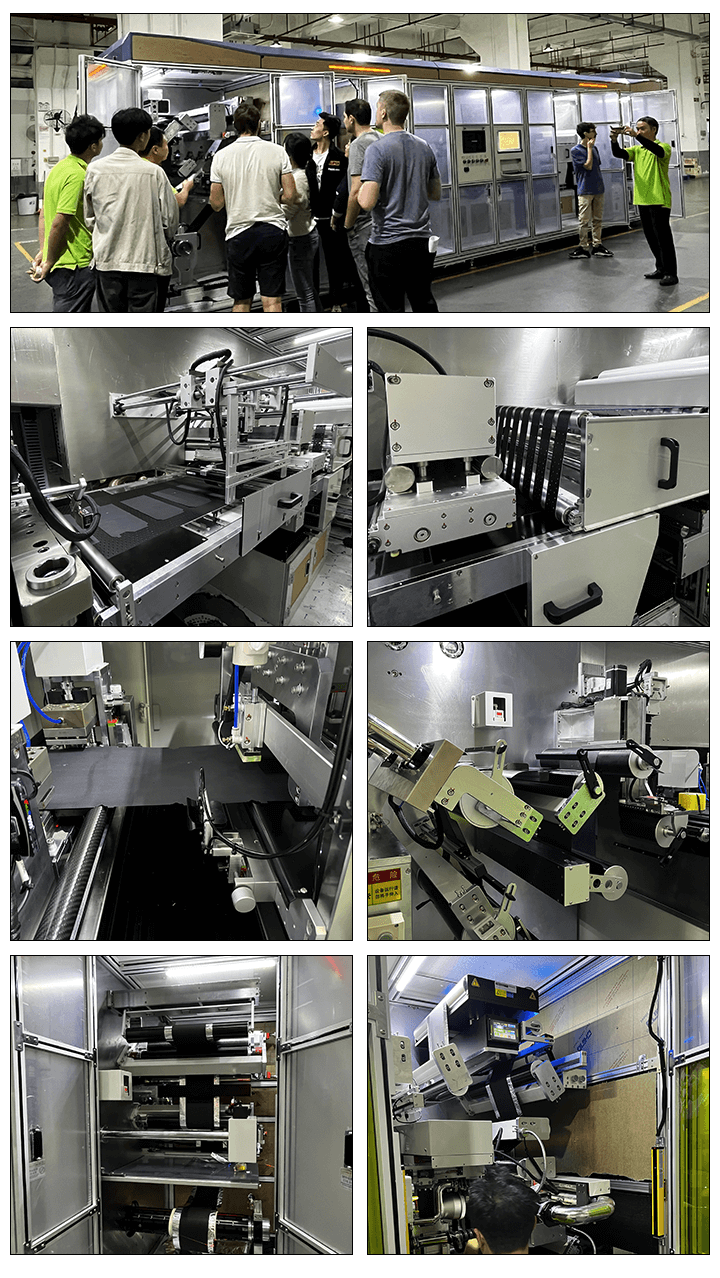

Highlights
 By rolling, auto adjustment and connect with platform
 Floating roller tension closed-loop control material, and storage of material function
 Carrier with single put single closed, automatic correction and collecting
 Floating roll strip tension closed-loop tension control
 Carrier strip through the brush to dust suction device
 Uses marching for accurately correcting strip
 With high precision optical fiber positioning servo precision confirm length pinch and then feeding
 Can die cutting several pieces in one time
 Stacking manipulator automatically take into the trough
 Trough adapt with the height of the anode/cathode properly
 Retainer with the leftover material will be auto delivered to leftover material barrel, for collected
 Top cone type rolling can be connected with auto rail car (optional)
 Double rectifying deflection of feeding mode to ensure feed accuracy
 Carrier have rewind function (optional)
 Automatic trough replace with stacking trough slot transporting drawstring docking (optional)
 Can be adapted to the incoming material for gap coating, continuous coating process
