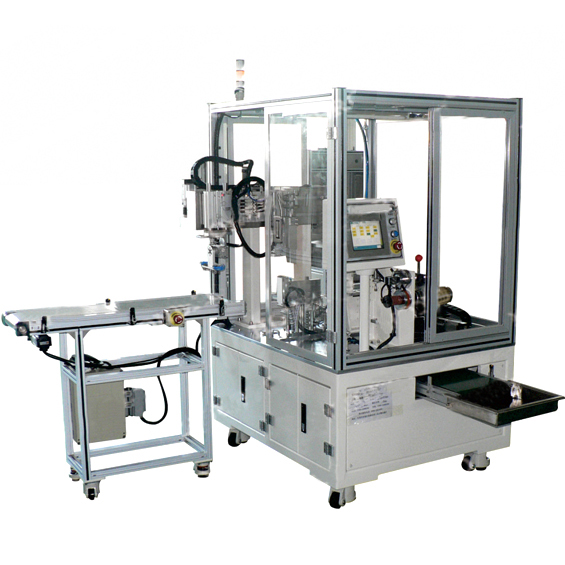

Automatic U type Sticking Film Machine

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-A-009
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Automatic U type Sticking Film Machine



Functions
 This equipment is suitable for the flexible packaging lithium batteries PP surface protective film.

Features
 Servo fixed-length puller, floating roller automatic tensioning.
 Drawstring to bring in and out, step by step control of roller coated.
 Vertical gas rose axis roll type feeding.
 PLC control, touch screen to adjust parameters.

Technical Parameters(for reference)

ITEM

HBDCS200(single station)

TMQ200(double stations)

Measure

1960*1000*2000mm(L*W*H)

2100*1950*2000mm(L*W*H)

Weight

About 0.8T

About 1.2T

Power

AC220V/50HZ, 2.5KW

AC220V/50HZ, 3KW

Air source

0.6Mpa,40L/Min

0.6Mpa,40L/Min

Vacuum source

-0.095Mpa,80L/Min

-0.095Mpa,80L/Min

Applicable range

H:50-200mm*W:60-200mm*T:2.5-10mm

H:50-200mm*W:60-200mm*T:2.5-10mm

Capacity

10EA/Min

20EA/Min

Action

99%

99%
