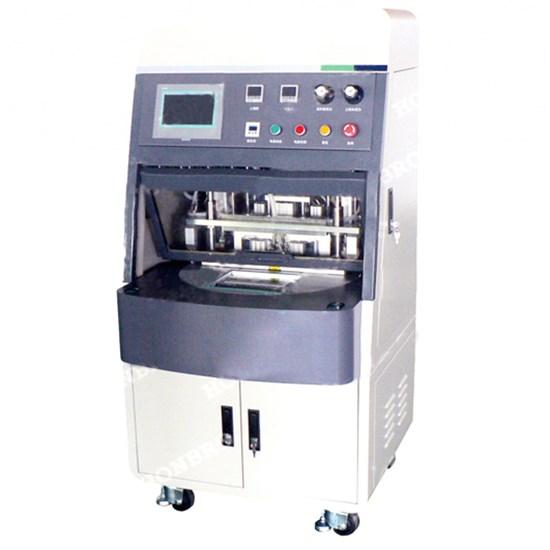

Automatic Vacuum Sealing Machine For Pouch Cell Final Sealing

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-A-018
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

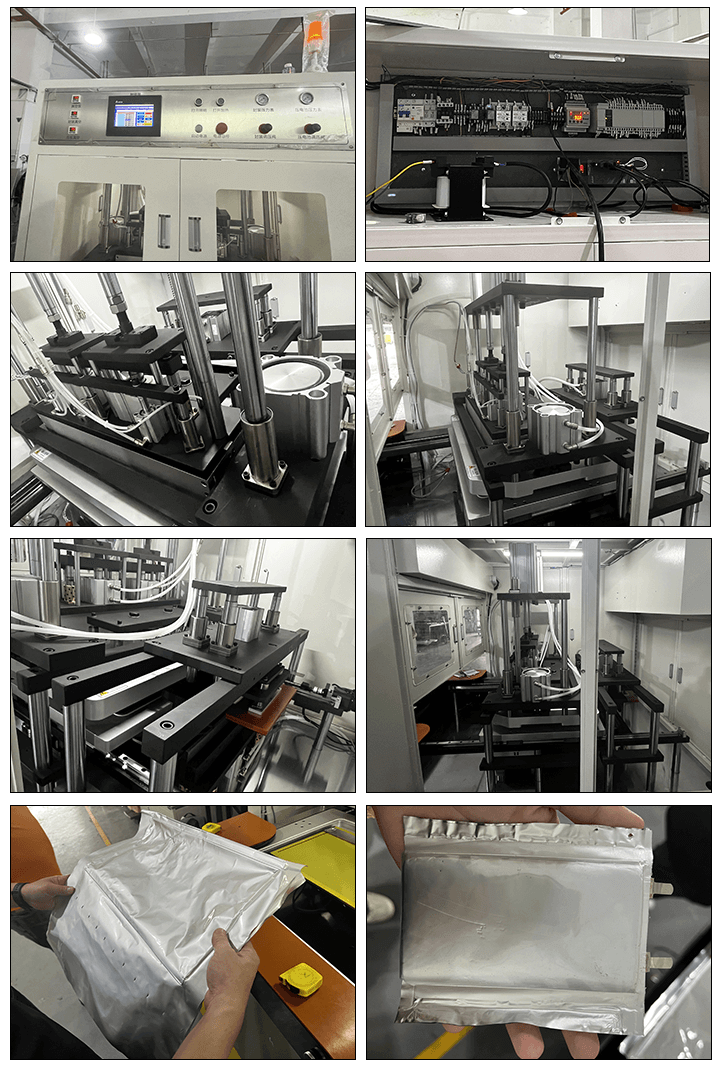

Automatic Vacuum Sealing Machine For Pouch Cell Final Sealing



Functions
 Suitable for soft package power battery air pocket prick, pumping air into vacuum state, encapsulation.

Features
 Double station rotating disc feeding, load/unload and encapsulation simultaneously;
 Turntable with cavity, inferior vena closed form an airtight seal is putting on cavity body, meet the demand of vacuum encapsulation electrolyte separate barrels, optimization of the electrolyte to eliminate channel, reduce the pollution of vacuum source;
 PLC automatic control, touch screen realization man-machine dialogue, easy to operate;
 The function of output statistics, has manual and auto operate function, fault alarm function;
 Presetting encapsulation of temperature, pressure, packaging time, extraction time, temperature abnormal alarm function;
 Equipped with upper head repair cylinder cavity, maintenance on head part and the bayonet all dew outside of the cavity, maintenance is convenient;
 Feeding turntable driven by precision CAM roller segmentation, positioning accuracy 30 ;
 Head up and down parallel: ± - 0.01 mm; the degree alignment can be adjusted;
 The top press plate use cylinder or spring pressure can be obtained.


Technical Parameters(for reference)

ITEM

HBS-DGS200(TY/QY)

HBS-DGS280(TY/QY)

HBS-DGS280(TY/QY)

Measures

L*W*H640*640*1500mm

L*W*H640*640*1500mm

L*W*H640*640*1500mm

Weight

About 500Kg

About 600Kg

About 800Kg

Power

AC380V/50Hz, 2.5KW

AC380V/50Hz, 2.5KW

AC380V/50Hz, 2.5KW

Air source

0.6Mpa,20L/Min

0.6Mpa,28L/Min

0.6Mpa,35L/Min

Vacuum source

-0.095Kpa,200L/Min

-0.095Kpa,280L/Min

-0.095Kpa,350L/Min

Applicable range

L:40mm-180mmW:35mm-120mmT:2.0mm-10mm

L:80mm-270mmW:80mm-195mmT:3.0mm-15mm

L:250mm-300mmW:150mm-200mmT:3.0mm-15mm

Capacity

2.5-3PPM

2.5-3PPM

2.5-3PPM

Action

99%

99%

99%



Vacuum Sealing Machine
