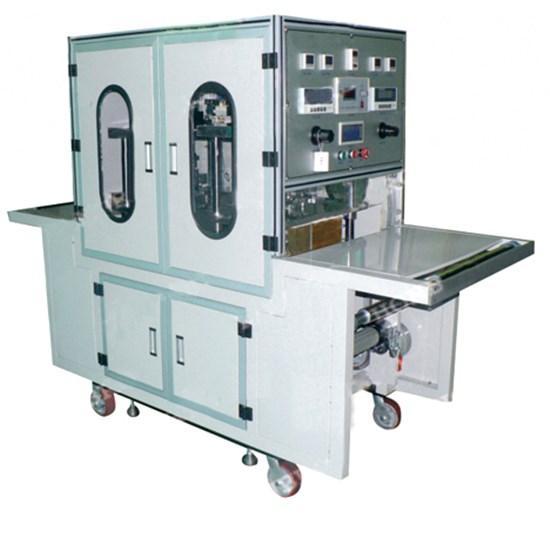

Hot Press Machine For Polymer Battery Core

Functions
● Apply to lithium battery auto hot-pressing plastic soft package, cold press finalize the sharp.

Features
● Separable structure gas rose axis, forklift load/unload material strap roll material;
● Hot-pressing temperature: room temperature up to -120° C is adjustable, can be set up compensation, heating at a single point in the template control accuracy ± - 3 ° C;
● Presetting cold, hot pressing temperature and the holding time, have abnormal temperature alarm function;
● Automatic control is realized by using PLC, touch screen man-machine dialogue, convenient operation and setting;
● Top and bottom template parallelism: ±- 0.02 mm, three pieces non-carbon paper are available down out evenly when in the 1 T settle pressure, temperature;
● Hot pressing plate for copper, greatly improving the heat transfer rate, improve the uniformity of the different location of the hot platen temperature;
● Mylar circulating feeding, front-rear stability, reduce the time of manual handling;
● Mylar volume gas rose axis loading, winding speed is adjustable, gas rose axis can be separated, convenient load Mylar.

Technical Parameters(for reference)：

ITEM	HB-LRY300	HB-LRY350
Measures	(L*W*H)2300*800*1800mm	(L*W*H)2300*800*1800mm
Weight	About 850Kg	About 850Kg
Power	AC220V 50HZ, 7.5KW	AC220V 50HZ, 7.5KW
Air source	≧0.6Mpa,20L/Min	≧0.6Mpa,20L/Min
Applicable range	L≤300mm w≤300mm	L≤350mm w≤350mm
Capacity	Depend on cold & hot press time	Depend on cold & hot press time
Action	≧99%	≧99%
