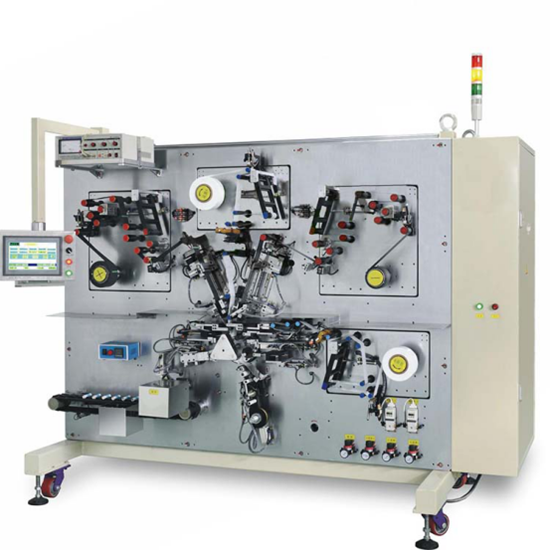

Automatic Winding Machine For Electrode Of Supercapacitor and Cylinder Battery

SPECIFICATIONS:

1 This machine is full automatic winding machine used for Capacitor and Cylinder Battery Winding machine.

2 The total winding process is full automatically.

1) Finished battery core outside diameter :D=φ25-φ70mm with tolerance ±0.8%.

2) Winding blade diameter :φ8-φ20mm(standard d = φ8 mm)

3) Winding length :1000-6000mm

4) Finished battery core height :b=100–170mm

5) Termination of the protective tape : 1.1-2cycle, adjustable, stick position adjustable, Overlapping length :50-360 mm

6) Finished battery core Degree of edge alignment as following

7)Winding mode as following

Technological process:

Separator feeding→Stop the feeding of tape and protective tape→Feeding of positive and negative plates→Detection of positive and negative foils→Pole group winding

→Length control→Stick the termination tape and protective tape→Final diameter monitoring→Chamfering→Through hole→Short circuit test→Good product discrimination
