Battery Anode Substrate Lithium Battery Anode Current Collector Material


Ⅰ、Introduction:

This electrode sheet is based on copper foil coated by carbon in double side, and is used as the anode electrode of Li-Ion battery.

Ⅱ、Product Parameters:

Current collector (substrate): Copper foil, 9 micron
Anode material: Composite Graphite
Active powder SSA (BET): 3~5 m^2/g
Binder: SBR+CMC
Double sides active material density: 120g/m2
Active Material Weight: 5.0176g
Active Material Proportion in Powder: 95.70%
Length: 241mm*Width: 200mm
Total Thickness: 110 um +/- 8 um
Foil Thickness: 10 um +/- 3 um
Coating Thickness:100 um +/- 5 um (double sized coated)
Specific Capacity: 330mAh/g
Net Weight: 14 g
Double side coated

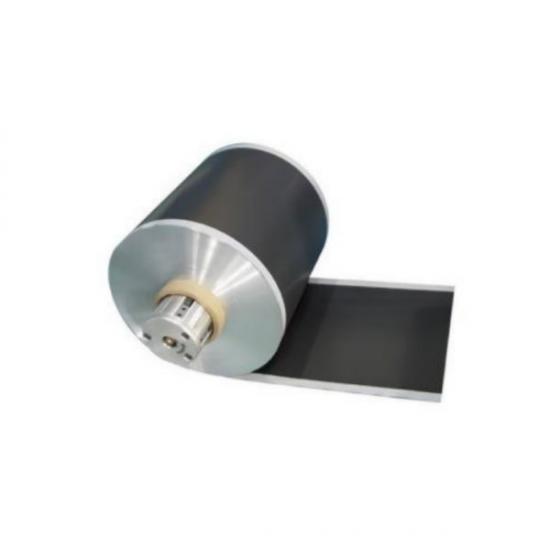

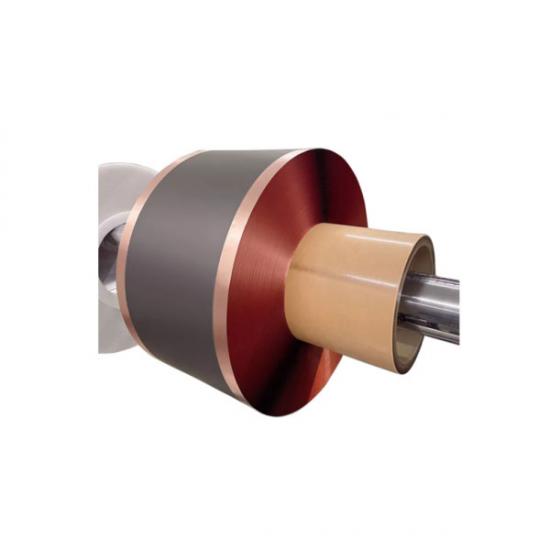

Both cathode and anode electrode can be customized in rolls .


Specification:

Specification
(length*width*thickness)mm

single side coated

241*200*0.052



double side coated

241*200*0.092

Areal density(g/m2)

single side coated

60



double side coated

121

Active substance(g)

single side coated

2.41



double side coated

4.85

Gram capacity ratio

single side coated

340



double side coated

340

Other Specification We Can Provide:

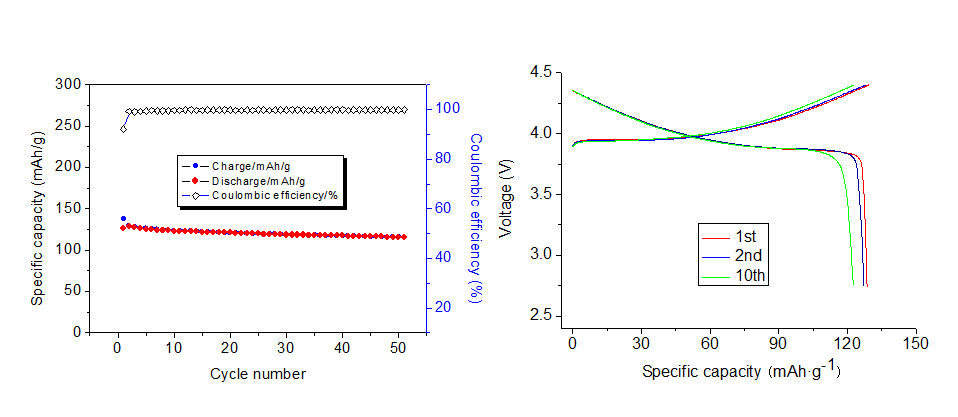

Ⅲ、Material Features:

Characteristics of lithium iron phosphate


Characteristics of lithium cobalate

Characteristics of Ternary material


Ⅳ、Product Display：




Ⅴ、Production Machine:



Ⅵ、Package:


ⅥI、Product Image:
