Lithium Ion Battery Anode Graphite Sheet Electrode With Double Coated/Single Coated

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com

  • Item NO.:

    TMAX-Electrode-6

  • Payment:

    L/C,T/T,Western Union, Paypal

  • Lead Time：

    2 days

  • Certificate:

    CE ROHS Certificate
Inquire Now
  • Product Detail

Lithium Ion Battery Anode Graphite Sheet Electrode With Double Coated/Single Coated


Ⅰ、Introduction:

This electrode sheet is based on copper foil coated by carbon in double side, and is used as the anode electrode of Li-Ion battery.

Ⅱ、Product Parameters:

Current collector (substrate): Copper foil, 9 micron
Anode material: Composite Graphite
Active powder SSA (BET): 3~5 m^2/g
Binder: SBR+CMC
Double sides active material density: 120g/m2
Active Material Weight: 5.0176g
Active Material Proportion in Powder: 95.70%
Length: 241mm*Width: 200mm
Total Thickness: 110 um +/- 8 um
Foil Thickness: 10 um +/- 3 um
Coating Thickness:100 um +/- 5 um (double sized coated)
Specific Capacity: 330mAh/g
Net Weight: 14 g
Double side coated

Both cathode and anode electrode can be customized in rolls .


Specification:

Specification
(length*width*thickness)mm

single side coated

241*200*0.052



double side coated

241*200*0.092

Areal density(g/m2)

single side coated

60



double side coated

121

Active substance(g)

single side coated

2.41



double side coated

4.85

Gram capacity ratio

single side coated

340



double side coated

340


Other Specification We Can Provide:


Ⅲ、Material Features:

Characteristics of lithium iron phosphate


Characteristics of lithium cobalate

Characteristics of Ternary material


Ⅳ、Product Display：




Ⅴ、Production Machine:




Ⅵ、Package:


ⅥI、Product Image:






Related Tags : Lithium Ion Battery Electrode Anode Graphite Sheet Electrode Lithium Ion Battery Anode Electrode Lithium Ion Battery Cathode Electrode
Related Products
Anode And Cathode Battery Electrode
Customized Anode And Cathode Battery Electrode For LithiumBattery, Cylindrical/Pouch/Prismatic Cell

Wechat:17720812054 Whatsapp:+86 13174506016 Email:David@batterymaking.com

Anode And Cathode Battery Electrode
Cathode And Anode LFP/LMO/NMC/LTO/Graphite Electrodes for Lithium Ion Battery

Wechat:17720812054 Whatsapp:+86 13174506016 Email:David@batterymaking.com

Cathode Battery Electrode
Cathode NMC 532/622/811 Electrode for Lithium Ion Battery Production Line

Wechat:17720812054 Whatsapp:+86 13174506016 Email:David@batterymaking.com

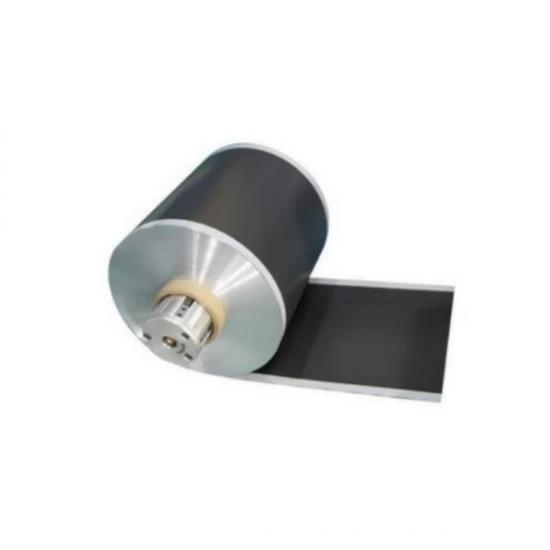

Battery Anode Cathode Electrode
LFP, LMO, LCO, NMC Battery Anode Cathode Reel Electrode For Lithium Ion Battery

Wechat:17720812054 Whatsapp:+86 13174506016 Email:David@batterymaking.com

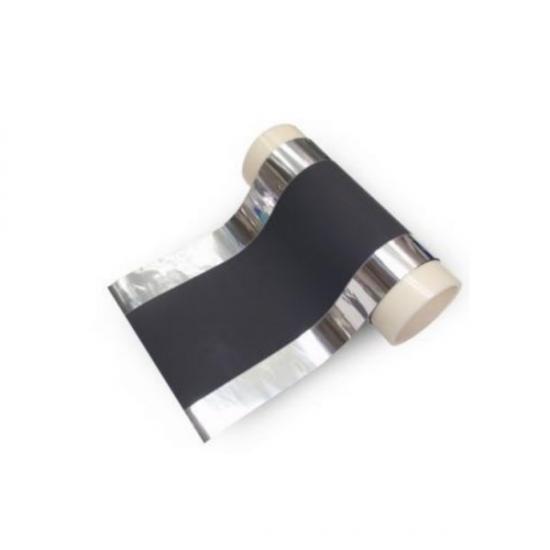

Battery Anode Cathode Electrode
Battery Anode Substrate Lithium Battery Anode Current Collector Material

Wechat:17720812054 Whatsapp:+86 13174506016 Email:David@batterymaking.com

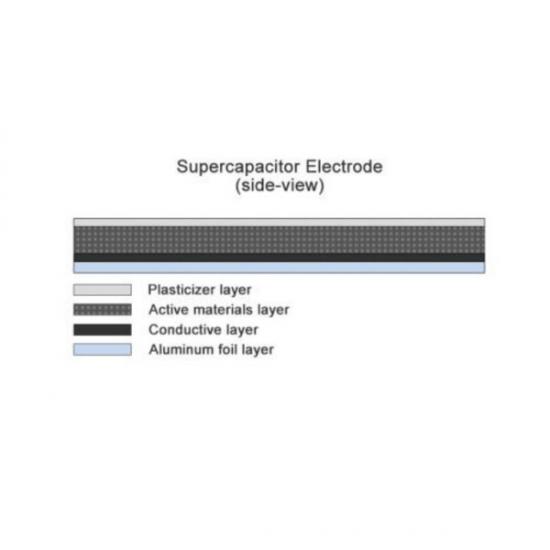

Dry Electrode Film
