Compact Filtration/Sieving System (750mL) For Electrode Slurry

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-MSK-FT01
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    5 days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Product Detail

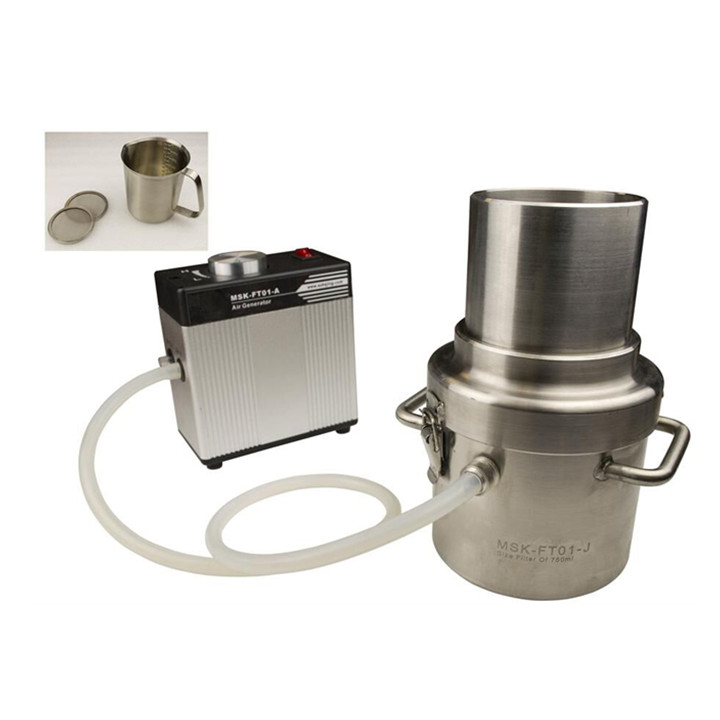

Compact Filtration/Sieving System (750mL) For Electrode Slurry



MSK-FT01 slurry filtration system is designed for use with the preparation of battery electrode slurries. It comes with two filters for removing particle sizes with dia. >120 or >100 micrometer. A SS304 slurry container together with a compact design allows for ease of operation and maximum flexibility in laboratory settings.

SPECIFICATIONS

Power Requirements

· Input: 100 - 240V AC; 50/60 Hz

· Output: DC12V, 0.4A

· Power plug configured for US electrical sockets (CE Certified) is included; plugs for other countries can be found

Structure

Made of SS304

Pump Flow Rate

3L/min

Absolute Vacuum Level

65kPa

Capacity

750mL

Filtration

· 2 Filters included

· Filtration Pore Sizes: 100 mesh & 120 mesh

Measuring Cup

· One stainless steel cup is included for measuring slurry up to 700ml or 24oz

· Scribe lines on the inside facilitate the measurement

Filter Container Dimensions

140mm x 70mm x150mm

Air Generator Dimensions

150mm x 150mm x 200mm

Net Weight

5kg

Warranty

· One year limited with lifetime support



Compact Filtration/Sieving System

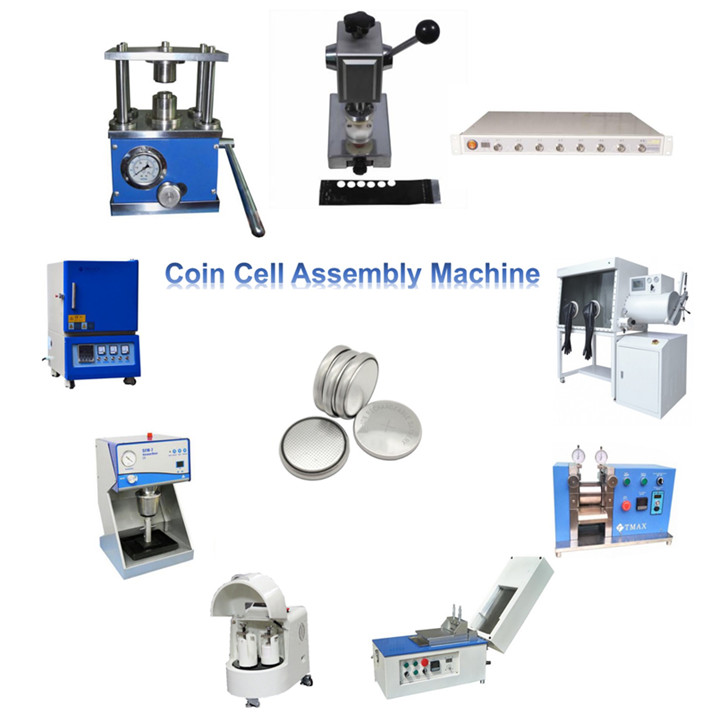

Coin Cell Line
