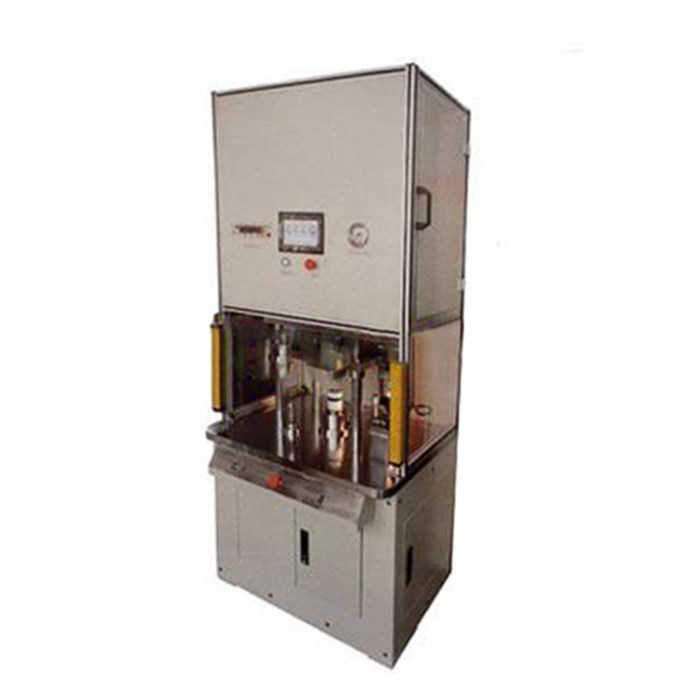

Cylindrical Supercapacitor Shaping Machine

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-YZ60-2GD
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Cylindrical Supercapacitor Shaping Machine





SPECIFICATIONS

Suitable for cell shaping of cylindrical supercapacitor.


Functional characteristics

1.Adopt hydraulic system as the shaping power, with stable and adjustable force and speed, and high working efficiency.

2.The shaping height may be set and adjustable by servo control system.

3.Equipped with the imported two-dimension bar code scanner. Data can be stored and derived, for the convenience of quality control and traceability on product.

4.Equipped with security door and safety protection light grid, with safe and reliable device operation.

5.Adopt the imported PLC. Touch screen displays operation.


Technical parameters

Power source

AC380V/50Hz

Air source

0.4~0.7M Pa

Cell specification

φ57x(80~130)mm

Pressure holding time

1s~10s(adjustable)

Nominal pressure

30kN

Height positioning accuracy

±0.03 m m

Shaping error(H)

±0.05 m m

Overall dimensions (LxWxH)

1100x1200x2100mm
