Heat Shrink Wrap Machine For Cylindrical Battery Pack

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-JK-BZJ--280
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

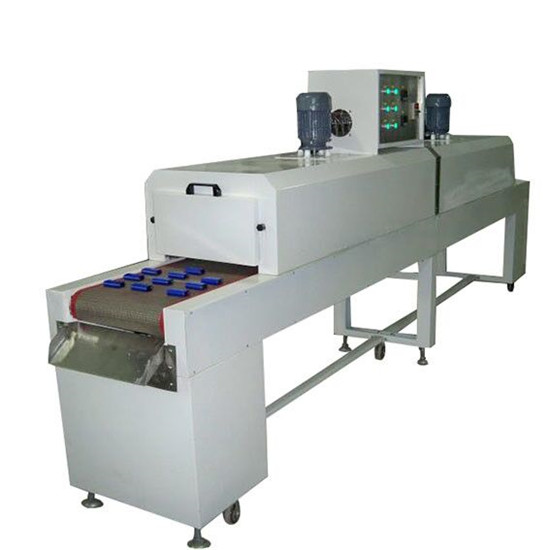

Heat Shrink Wrap Machine For Cylindrical Battery Pack


Features:

TMAX-JK-BZJ--280 heat shrink machine is Designed for cylindrical and combination battery heat shrinkable packaging process, using far infrared ray and cycle wind combination heating technology, ensure the battery plastic covers evenly heat shrinkage, famous and beautiful deformation, high consistency.


Advantages:

The heat shrink packaging machine is packaged in a shrink film on the outer layer of the product or packaged product. After heating, the shrink film is wrapped around the product or package, fully displaying the appearance of the product and improving the product's exhibition type, increasing the appearance and value, and shrinking the product. It can seal, protect against moisture, protect the product from impact, and has a certain cushioning type, especially fragile products, which can prevent the container from being broken and scattered, prevent injury, and reduce the possibility of product being dismantled and stolen.


Specifications:

Model

 Heat Shrink Machine  TMAX-JK-BZJ--280

Source voltage

AC 380V, 50HZ

Power

10.5KW

Warranty

One year limited warranty and lifetime support

Heating mode

Far infrared ray heat combined with circulating hot air

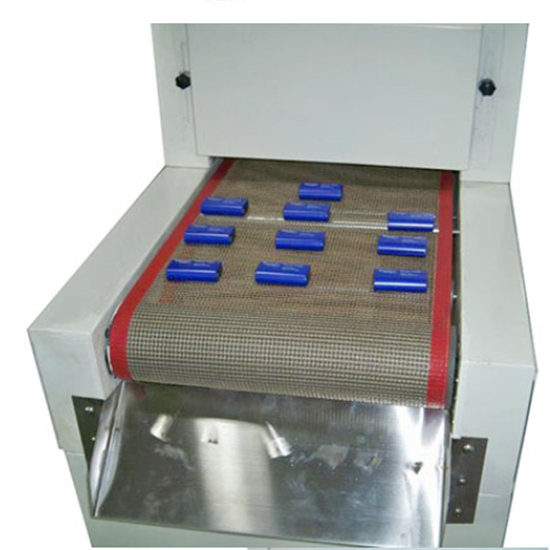

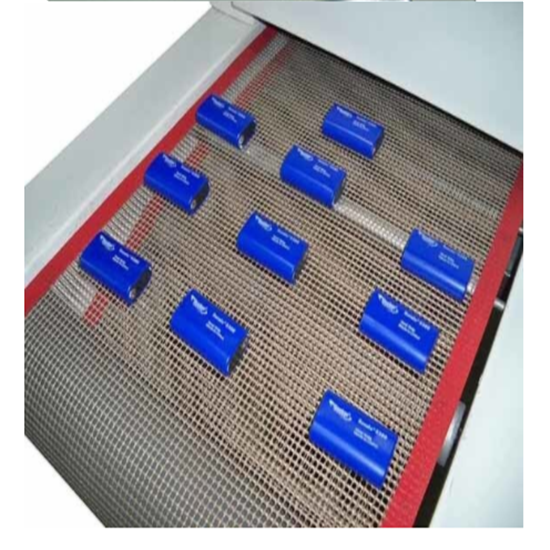

Conveyor line specification

Length 2000mm, Width 280mm, The revolution combined with the rotation

Speed

0.1-6M/min, Infinitely adjustable-speed

Temperature range

RT-180, With 2 accuracy, PID Electronic temperature control

Battery out temperature

<60





Heat Shrink Machine



Heat Shrink Machine



Heat Shrink Machine

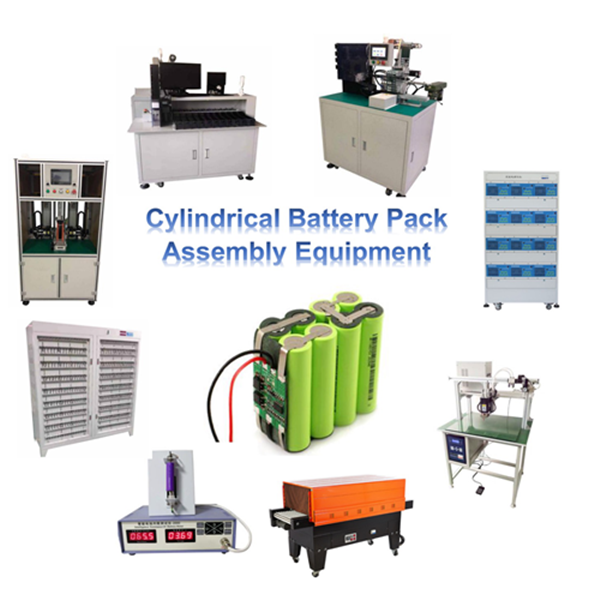

          Battery Pack Assembly Equipment
