Supercapacitor Assembly Machine Line

/High Measurement Accuracy Threaded Cylindrical Supercapacitor Vacuum Electrolyte Filling Machine

High Measurement Accuracy Threaded Cylindrical Supercapacitor Vacuum Electrolyte Filling Machine

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-ZY60B
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

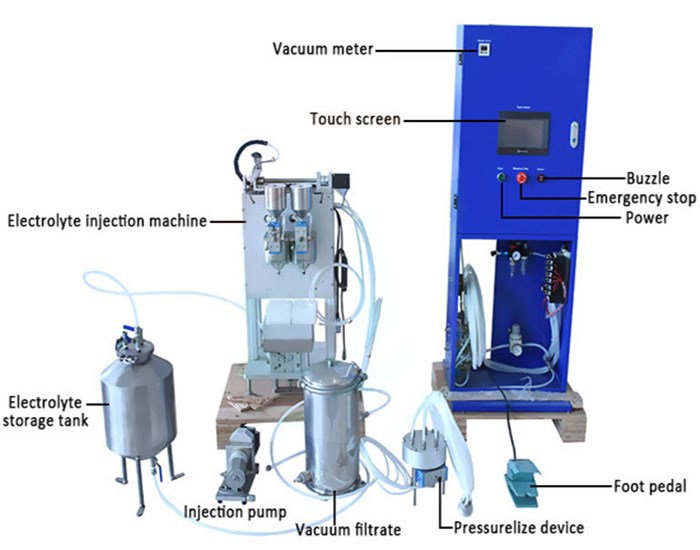

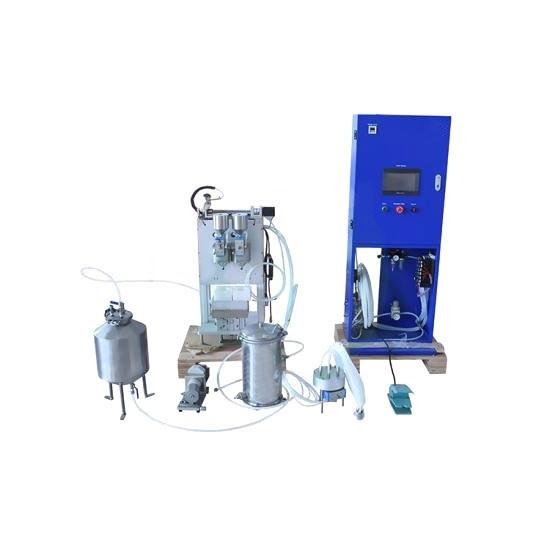

High Measurement Accuracy Threaded Cylindrical Supercapacitor Vacuum Electrolyte Filling Machine



Main features

* High measurement accuracy and repeatability;
*Injecting liquid after vacuum pumping, Then vacuum after injection, such alternating operation standing method, high efficiency, accurate accuracy, convenient and reliable operation;
*2 stations can choose one station operation without mutual interference;
* The time of vacuuming, the degree of vacuum, the time of injecting, the pressure of pressurization can be set and adjustable;
* Anti-corrosion, special high wear-resistant ceramic pump head, long life design, imported components in key parts;
*The entrance and exit are connected by chemical resistant hoses;
* can be operated in a glove box or dry room;
* The appearance is exquisite and beautiful, and the performance is stable.


Model

TMAX-ZT60B Vacuum filling machine

Applicable products

diameter 60 mm batteries, super capacitor,height 50-180mm

Filling station

Single face 2 stations

Filling accuracy

±2%, 0~250ml adjustment

Vacuum

Vacuum pressure is maintained above -98KPa during injection(vacuum pump provide by yourself)

Nitrogen

≥0.4MPa

Voltage

AC220V

Power

1.5KW

The key parts are made of stainless steel corrosion resistant materials.
