Hot Press Machine For Prismatic Cell Lab Making

Wechat:17720812054

Whatsapp:+86 17720812054

Email:David@batterymaking.com

Item NO.:
TMAX-RY400
Payment:
L/C,T/T,Western Union, Paypal
Lead Time：
5 days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate

Inquire Now

Product Detail

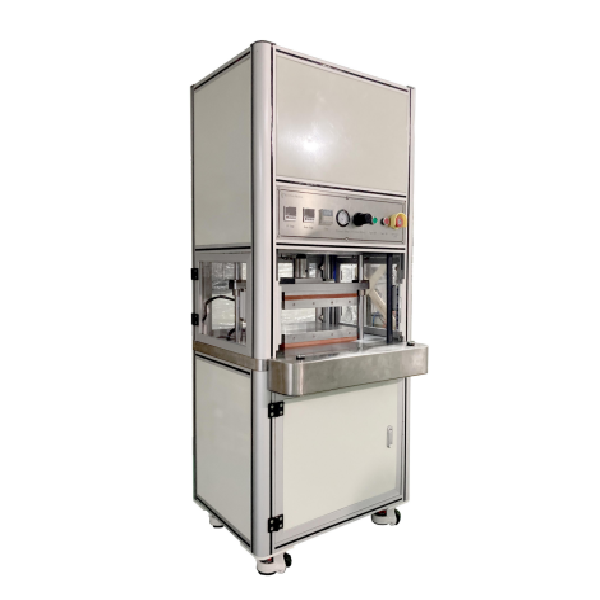

Hot Press Machine For Prismatic Cell Lab Making

1 Equipment description

TMAX-RY400 has simple structure and easy operation.

During operation, equipment power supply first, the equipment will heat automatically after setting temperature, When achieved to the set temperature, manual put the cell or other materials on the lower plate, set press time and pressure, double press the start button, the upper plate will down automatically, when up to the set time, the upper plate will rise automatically, then take out the cell or materials.

2 Technical parameters

Model	TMAX-RY400
Press plate size	400*300mm
Plate material	Copper plate
Max press pressure	5T
Parallelism of upper and lower hot plates	≤0.1mm(Tolerance as shown below)
Control temperature	RT-200℃,adjustable, With temperature error ±2°
Air supply	0.4-0.65MPa, compressed air connect tube outer diameter 10mm
Source voltage	Single-phase: 220V/60Hz
Power	≤4KW
Dimension(LWH)	About 8007601900mm
Weight	≤280Kg
Appearance colour	International warm grey 1C
Advantage	Equipment with universal wheel design , convenient handling, movement; Designed with load-bearing adjustable foot, upper and lower adjustable range ≥8cm, foot diameter ≥80mm
Basic configuration	* 5 ton gas-liquid pressure cylinder * Upper and lower copper heating plate * Upper and lower working plate thickness 30MM * Panasonic/Omron temperature controller * Omron time relay adjustable between 0.01S -99H * FOTEK solid state relay * Device is provided with emergency stop and an emergency stop protective cover; * Personnel working station is equipped with safety grating to prevent personal safety problems. * Adopts double button start, button spacing ≥260mm;
