Lab-scale Lithium-ion Battery Vacuum Degassing Machine

Application
Maximize your battery manufacturing efficiency with the advanced vacuum degassing solution! Specifically designed for pouch and cylindrical cells, the system uses precision vacuum technology to accelerate electrolyte absorption, resulting in faster production cycles and improved cell consistency. Featuring robust construction and user-friendly controls, it's the ideal choice for labs and production lines seeking reliable, high-performance degassing capabilities.

Key Features

Fully adjustable for pouch, cylindrical, and prismatic cells up to 300mm in height. Tool-free fixtures enable rapid reconfiguration between batch sizes, minimizing downtime during production shifts.

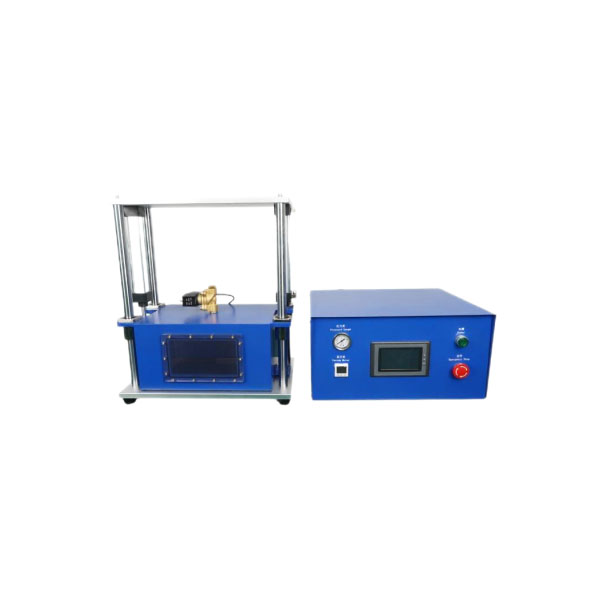

Modular split design separates the stainless steel vacuum chamber from the PLC control unit. This allows integration into inert glovebox environments or standalone use on production lines, ensuring compatibility with diverse manufacturing workflows.

Maintains ±0.5% vacuum stability during 30-minute hold cycles, supported by a high-performance rotary vane pump. Advanced PID control algorithm minimizes pressure drift, ensuring consistent degassing outcomes.

Dynamic Multi-Cycle Processing

Programmable vacuum profiles with up to 10 customizable cycles (vacuum-hold-release sequences). Each cycle enhances electrolyte penetration through controlled pressure differentials, improving electrode wetting by up to 27% compared to single-cycle methods.

304 stainless steel chamber features a 150mm diameter borosilicate glass viewing window with LED illumination. Allows operators to observe bubble evolution and electrolyte distribution during filling without compromising vacuum integrity.

Hydraulic cylinder actuator with dual linear guides ensures parallel motion control within ±0.05mm. Silicone O-ring seals provide leak rates <0.1 Pa·m³/s, maintaining vacuum integrity over 100,000 operational cycles.

Technical Specifications
