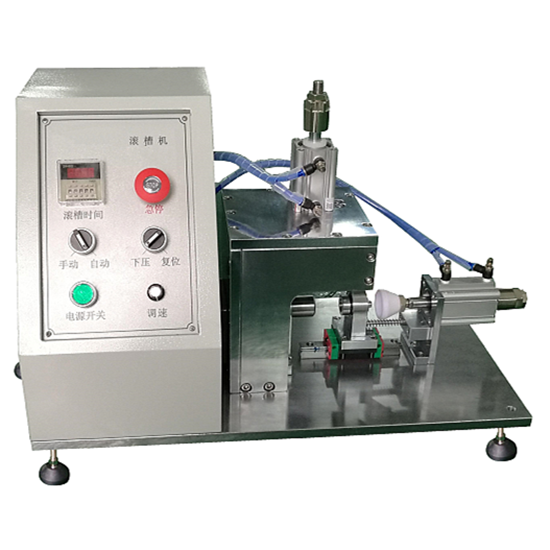

Lab Supercapacitor Roll Grooving Groover Machine For Ultracapacitor

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-ZGC32
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Lab Roll Grooving Groover Machine For Supercapacitor



It is used in the channeling process of cylindrical battery that is producted in laboratory and enterprise in small scale.

CE Certificate semi-auto grooving machine for all kinds of cylindercial battery 18650, 26650, CR123A and supercapacitor with changing die.



Functional characteristic:

The channeling molds that are equipped withstandard 18650 cylindrical battery;

It can be used in the channeling process of the steel shells of 26650 and other cylindrical battery by relace molds;

The dimension of the channeling can be adjusted slightly,the size is small,which makes it easy to operate and the appearance is attractive;

The channeling is high precision and the dimension is stable.



SPECIFICATIONS:

Model

TMAX-ZGC32 Roll Groove Machine

Power source

AC200V/50HZ

Total power

200W

Air source

0.5-0.7Mpa

Depth of the channeling

1.2-2.0mm(adjustable)

Width of the channeling

1.5mm(The thickness of the hob can be customized)

Machining accuracy

±0.1mm

Hob life

>One million times

Capacity

semi-automatic 400 ea/h

Channeling molds

18650,26650,etc.

Channeling time

0-99s(adjustable)

Dimensions

720(L)*380(W)*480(H)mm

Weight

52Kg
