500°C 25T Automatic Hot Plate Hydraulic Press

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-RYJ-500
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

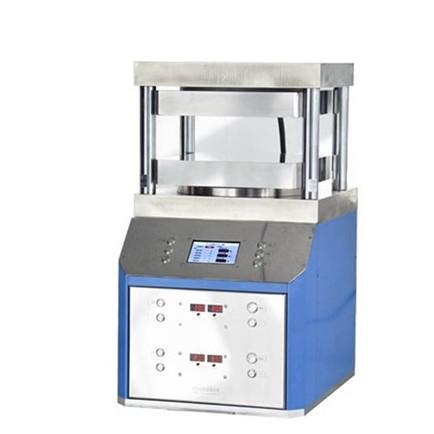

500°C 25T Automatic Hot Plate Hydraulic Press

Features

RYJ-300 automatic high temperature hot press is an integrated, widened and double plate high temperature hot press developed on the basis of the original manual hot press and fully automatic split hot press. This kind of hot press has a wide range of applications, meeting the needs of some customers for large tonnage pressure and large area sample heating.

The hot press is mainly used in some laboratories and units that need to prepare or test powder samples, particle samples, plastic films and other solid samples at high temperature and high pressure. After being heated and pressurized, the chemical stability of the sample particles or powder is improved, which is not easy to be broken and is conducive to cutting and preservation.

It is perfectly suitable for engineering and technical personnel of colleges and universities and research institutes to carry out spectrum detection and qualitative analysis.


Technical Parameter


Pressure range

0-25T

Pressurization process

Program Pressurized--Holding pressure--Pressure relief

Pressure holding time

0-999s

Thermostat temperature control

RT-600℃

Abrasive heating temperature

RT-500℃

(recommended temperature is not more than 450 )

Temperature control accuracy

0.1℃

Control mode

LCD display, touch screen control

Pressure control

Automatic controlled by touch screen

Temperature control

Controlled by touch screen

Equipment insulation method

Imported heat plate + stainless steel water-cooled heat plate

Mold cooling mode

Water cooling quick cooling (water cooler is optional)

Machine structure

Integrated structure, fully automatic temperature and pressure control

Number of heating dies

Up and down 2 flat plates total, polished surface

Platen Area

300 mm x 300 mm  ( Nominal 12"x12" )

Machine dimensions

420×550×680mm

Power supply

220V/4000W

Machine weight

About 300kg
