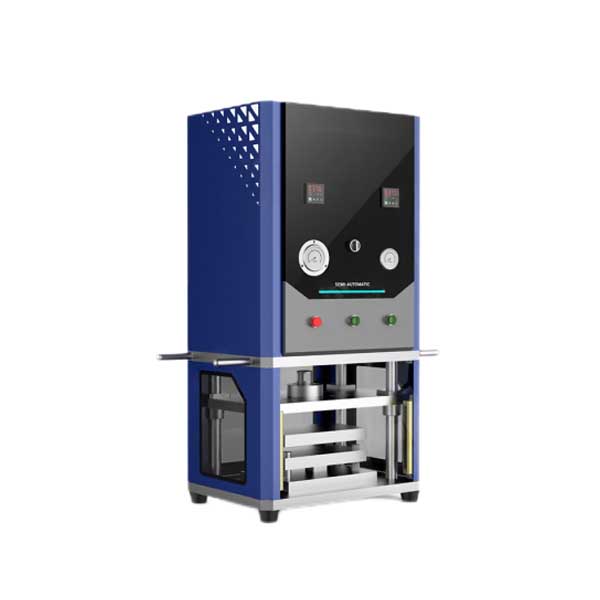

Pouch Battery Case/Cup Forming Machine With Optional Die Size For Pouch Cell Lab

Application

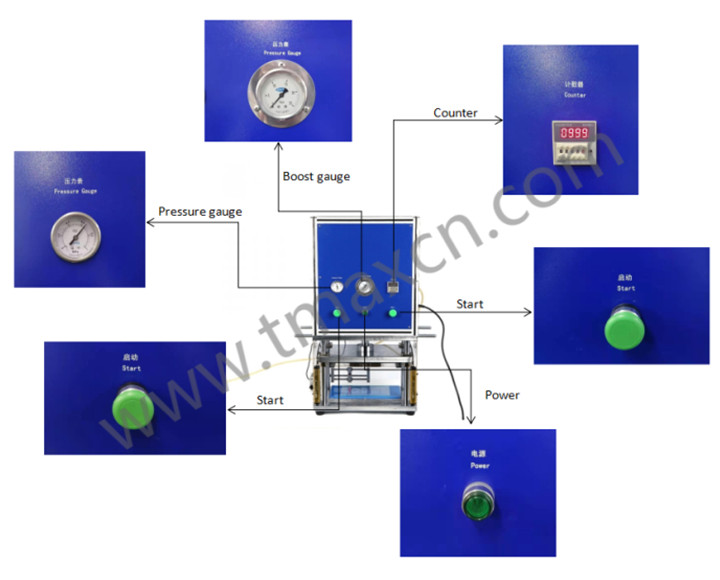

The TMAX-SCK200 is a semi-automatic pouch cell forming machine specifically designed for pouch cell aluminum-laminated film case forming. It utilizes a booster cylinder to convert low air pressure into high hydraulic output, driving the mold to shape the aluminum-laminated film into a case for pouch cell lithium batteries.

Key Features

· Quick and easy adjustment of forming depth.

· Fast mold replacement, enhancing operational efficiency.

· No fish-tail or corner collapse after forming, ensuring clean product contours.

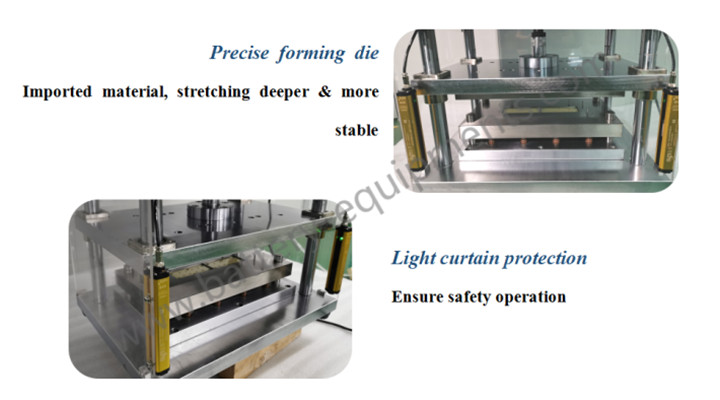

· Four-guide pillar structure for smooth and precise vertical motion.

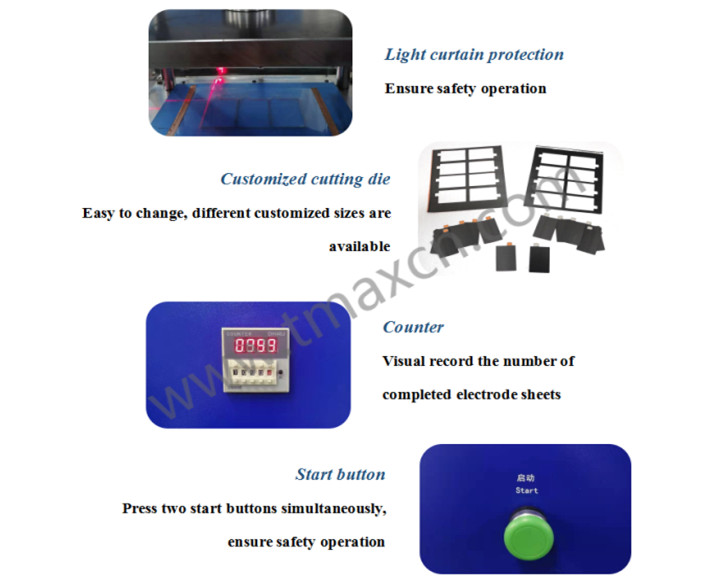

· Safety ensured with light curtain, dual-button controls, and protective covers.

· Compared with similar machines, this model provides deeper and more stable forming results with equivalent film quality.

· Compact, safe, and user-friendly, suitable for lab or pilot production use.

Technical Specifications

Model	TMAX-SCK200	TMAX-SCK300
Applicable Aluminum-laminated Film Size	Max. L200mm × W150mm (customizable)	Max. L300mm × W280mm (customizable)
Booster Cylinder	3T (adjustable)	5T (adjustable)
Counting Mode	Digital counter display	Digital counter display
Power Supply	AC220V / 50Hz	AC220V / 50Hz
Power Consumption	100W	100W
Compressed Air Supply	0.5–0.7MPa	0.5–0.7MPa
Machine Dimensions	L460mm × W320mm × H925mm	L560mm × W420mm × H925mm
Machine Weight	Approx. 180kg	Approx. 210kg
Mold/Mandrel Roughness	Ra 0.4	Ra 0.4 (mirror polished)
Upper/Lower Mold Flatness	0.02mm	0.02mm
Mandrel Flatness	0.02mm	0.02mm
Max. Forming Depth	Max. 6mm (depends on film strength)	Max. 6mm (depends on film strength)
