Item NO.:
TMAX-TP200Payment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaShipping Port:
XiamenLead Time：
5 daysCertificate:
CE ROHS CertificatePouch Cell Edge Flattening Machine for Pre-Sealing Process
Application

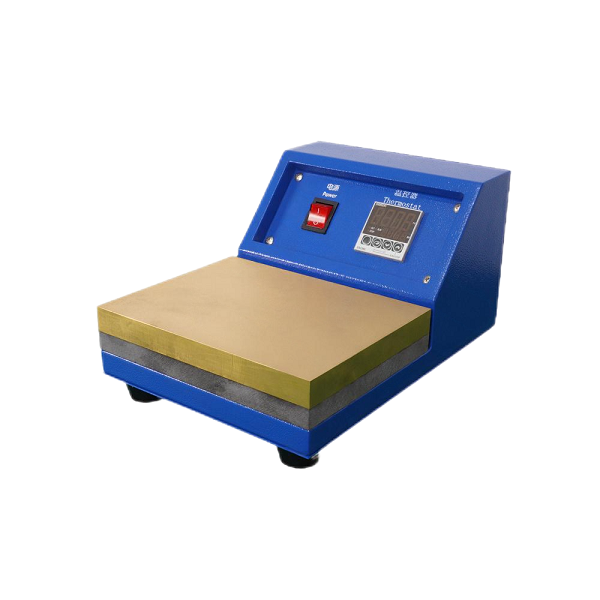

The TMAX-TP200 Pouch Cell Edge Flattening Machine is designed for edge ironing and reshaping of pouch-type lithium ion battery aluminum-laminated films after folding. It ensures a neat and flat appearance, enhancing the aesthetic and structural quality of the battery edges.
· Imported temperature controller (Omron) enables precise control of heating plate temperature, adjustable from room temperature to 250°C.
· Safe anti-scalding design, with temperature adjustable via digital control panel.
· Copper heating platform, offering excellent heat conductivity, energy efficiency, and high work efficiency.
· Compatible with various pouch cell sizes, providing flexible application.
· Attractive design, featuring three-dimensional sheet metal structure for a clean, modern look.
· Compact machine size, producing uniform and smooth ironing results with high visual quality.
|
Parameter |
Specification |
|
Ironing Platform Size |
L200mm × W155mm |
|
Temperature Range |
0–250°C ±2°C (Adjustable, digital display) |
|
Heating Element Power |
250W |
|
Power Supply |
AC220V / 50Hz |
|
Total Power Consumption |
1.5KW |
|
Machine Dimensions |
L280mm × W200mm × H165mm |
|
Machine Weight |
20kg |
|
Heating System |
Copper heating platform |
|
Key Electrical Components |
Omron temperature controller & solid-state relay |
