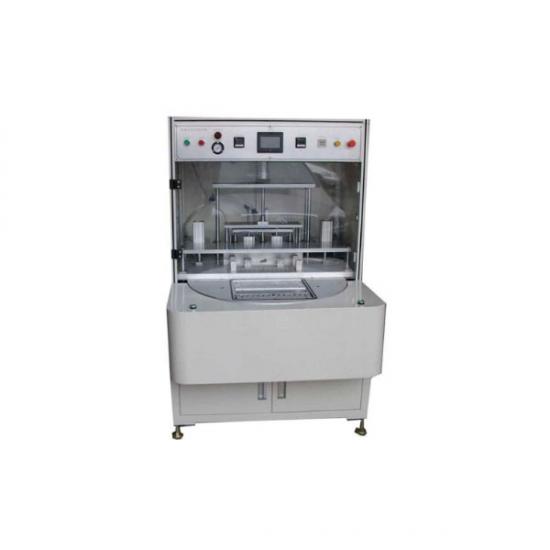

Rotary Vacuum Sealing Machine for Lithium-Ion Pouch Cells

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com

Item NO.:
TMAX-ZZF-350
Payment:
L/C,T/T,Western Union, Paypal
Product Origin:
China
Shipping Port:
Xiamen
Lead Time：
5 days
Certificate:
CE ROHS Certificate

Inquire Now

Product Detail

Rotary Vacuum Sealing Machine for Lithium-Ion Pouch Cells

I. Equipment Description

This equipment is applicable to the vacuum sealing process of lithium-ion pouch cells.
It features a rotary dual-fixture alternating structure. The two fixtures take turns to load and unload cells, alternately entering the vacuum sealing chamber, so that the clamping time does not affect the equipment's efficiency.
After placing the battery into the fixture on the rotary table, press the start button. The turntable rotates 180 degrees, and the battery enters the vacuum sealing zone. The vacuum chamber closes, and the vacuum pump starts running.
When the vacuum level inside the chamber reaches a preset low value, the piercing needle is activated to puncture the gas bag, thus preventing the interior of the battery from coming into contact with air.
Once the chamber achieves ultimate vacuum, the upper sealing bar carries out the sealing operation.
Press the start button again, and the turntable rotates 180 degrees: the sealed cell exits the vacuum zone, while the unsealed cell enters the sealing zone — and this cyclic operation continues.

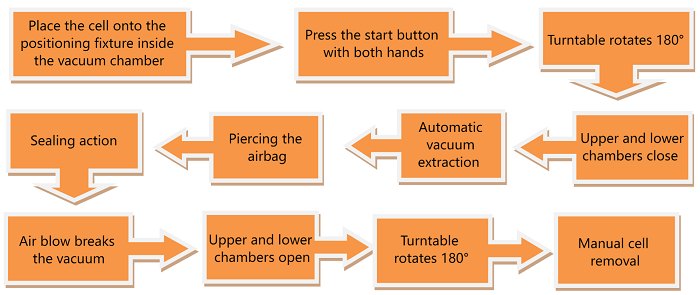

II. Process Flow

III. Applicable Cell Specifications

Item	Dimension (mm)	Cell Illustration
Cell Length L (excluding tab)	96 / 263.5
Cell Width W	66.2 / 108.5
Cell Thickness T	3 – 10
Tab Length Lj	30 / 55
Cell Type	Single / Double Sided Tab

IV. Equipment Parameter Description

Technical Item	Specification
Cell Sealing Length	Sealing head length ≤ 350 mm
Cell Width	≤ 120 mm
Sealing Head Max Heating Temperature	≤ 250°C
Sealing Method	Hard sealing
Sealing Head Width	5 mm
Temperature Accuracy	±3°C
Sealing Time	0–99 seconds, individually adjustable
Sealing Pressure	≥ 0.4 MPa, adjustable, independently controlled
Vacuum Degree	≥ -95 KPa, adjustable
Vacuum Holding Time	Adjustable
Heating Rod Power (single)	≥ 800 W
Piercing Needle	Alloy material, adjustable, easy to replace
Cell Tab Type	Single / Double Tab Cells
Sealing Head Material	Brass H62
Sealing Head Structure	Split structure, easy replacement
Sealing Head Parallelism	±0.01 mm

V. Main Features

- Dual-station rotary structure with a positioning accuracy of ±0.05 mm
- Sealing head operating temperature range: ambient temperature to 250°C
- Temperature control accuracy: ±3°C
- Sealing time: 1–99 seconds, adjustable
- The vacuum pressing mechanism utilizes springs and cylinders, ensuring flatness even during frequent cell model changes
- An electrolyte recovery tray is installed on the rotary table for easy cleaning
- The vacuum pipeline is equipped with an electrolyte filter, effectively preventing corrosion of the vacuum system
- The upper sealing bar adopts a double-linkage pneumatic structure to ensure parallel movement
- The piercing needle is positioned within 10 mm of the sealing bar, suitable for various battery sizes
- Time accuracy: ±0.1 second
- Upper and lower copper sealing heads with a width of 5 mm
- Maximum sealable cell size: 350 (L) × 120 (W) × 10 (T) mm
- Automatic alignment function for sealing heads; edge distance from the pouch edge ≤ 0.5 mm
- Vacuum degree ≥ -95 KPa
- Equipped with a touchscreen error display function
- Manual mode available for convenient adjustments
- Aluminum alloy frame with grey-white spray coating; machined parts undergo anti-rust treatment

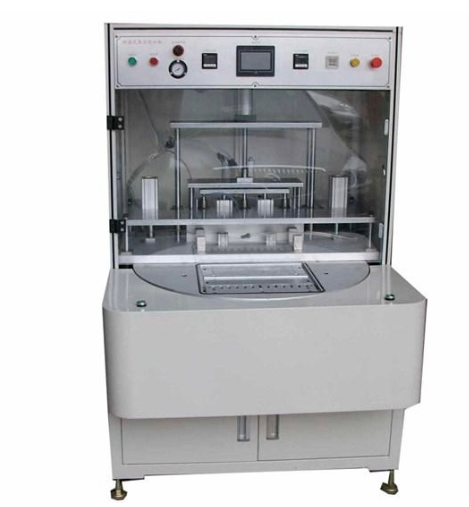

VI. Reference Images

VII. Main Configuration

No.	Item	Manufacturer / Brand
1	PLC	Panasonic
2	Touchscreen	Kunlun Tongtai
3	Cylinder	AIRTAC
4	Solenoid Valve	AIRTAC
5	Temperature Controller	OMRON
6	Vacuum Gauge	Panasonic
7	Pressure Regulator	AIRTAC
8	Electrical Components	CHINT
9	Indexing Divider	Huachi

VIII. Spare Parts and Consumables

No.	Name	Model/Spec	Material	Brand	Unit	Qty
1	Heating Rod	￠9.8 × 360	Stainless Steel	Domestic	pcs	2
2	Solid State Relay	DA25A	—	LIYOU	pcs	2
3	Thermocouple	—	—	Domestic	pc	1
4	Piercing Needle	—	Alloy	In-house	pcs	5

IX. Power and Installation Parameters

No.	Item	Specification
1	Equipment Power	AC220V ±10％ / 50Hz; Power ≤ 2.5 kW
2	Air Source	0.4–0.7 MPa; 10 L/min
3	Vacuum Source	≤ -100 KPa; Flow ≥ 5 L/min
4	Floor Load	≥ 300 kg/m²
5	Noise Level	60 dB at 1 meter distance
6	Equipment Weight	Approx. 120 kg
7	Equipment Size	1200 mm × 1200 mm × 1650 mm
