Pouch Cell Final Vacuum Sealing Sealer Machine For Pouch Cell Preparation

Wechat:17720812054

Skype and Whatsapp:+8617720812054

Email:Beata@batterymaking.com


  • Item NO.:

    TMAX-FinalSealing
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    In stock
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Product Detail

Pouch Cell Final Vacuum Sealing Sealer Machine For Pouch Cell Preparation

TMAX-FS200 is mainly used for pouch cell vacuuming and second sealing after electrolyte filling.

1.Head made of copper material, heat transfer effect is good to save power consumption, improve efficiency, energy saving than similar products.

2.The upper and lower head pressure can be adjusted through the regulator to achieve different process parameters.

3.Upper and lower head with cylinder driven by two linear guide sleeve guide, up and down flexible, accurate guidance to ensure product parallelism after sealing requirements

4.With automatic puncturing function, waste recovery unit.

5.Cover cavity driven by the cylinder, guided by a linear guide sleeve, up and down flexible, accurate guide to ensure product sealing requirements

6.Can be applied to different specifications of the product battery, and the adjustment is simple and convenient.

7.Easy to operate, beautiful appearance, small size, light weight.


Sealing head temperature

RT-250℃,adjustable

Temperature control precision

±1.5℃

Heat sealing pressure

0-7kg/cm2,adjustable

Heat sealing time

0-99 second,adjustable

Sealing width

5mm,adjustable

Vacuum degree

-90Kpa ~ 0 adjustable (the buyer-owned vacuum pump)

Voltage

220V/50Hz

Power

300w heat pipe, heating when the power consumption of about 0.6KW

Compressed air source

0.5-0.7Mpa

Size

L500mm*W500mm*H700mm

Head parallelism

with triple carbonless paper, head pressure at 0.6MPa, the temperature at 200 ℃ when the seal out of the seal

Air consumption

about 0.2L compressed gas / each time

Pneumatic working speed

≥ 180 times / h

Dimension

515mm * 350mm * 505mm

Weight

56kg


Final Sealing Machine

Final Sealing Machine

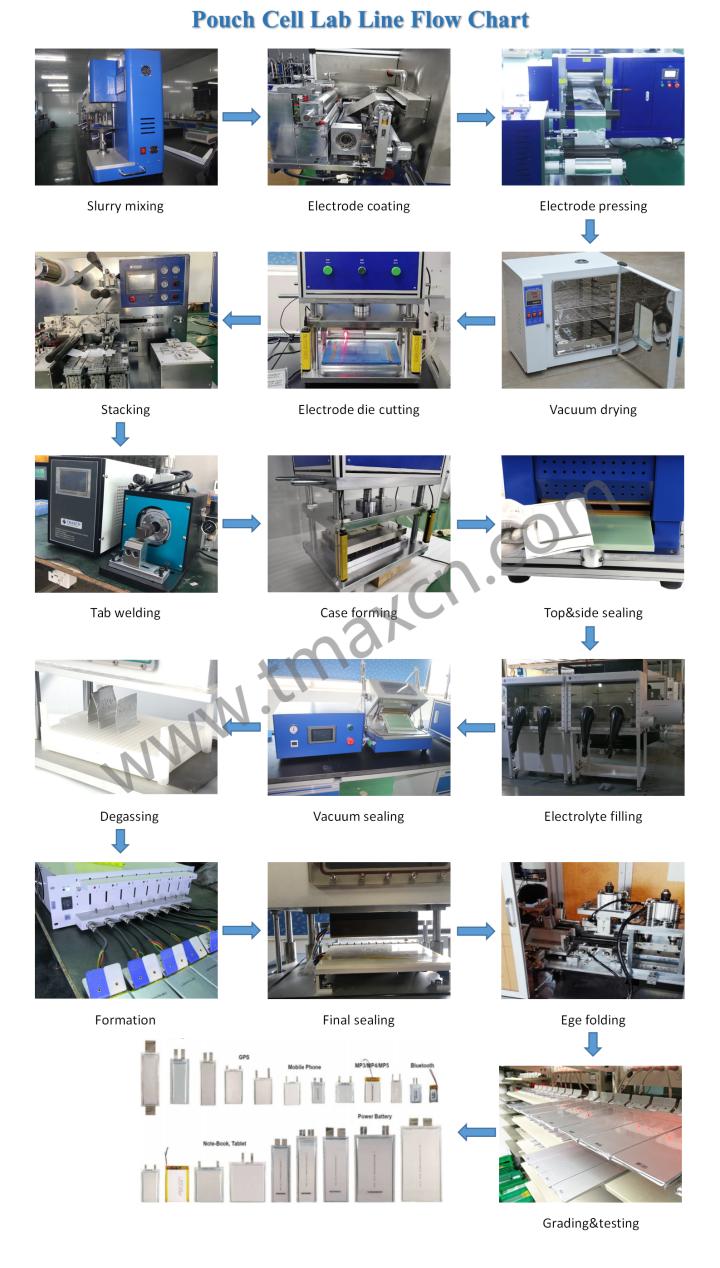

Pouch Cell Preparation
