Small Lab Electrode Vacuum Slurry Mixer Mixing Machine with Containers

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-SFM-7

  • Payment:

    L/C,T/T,Western Union, Paypal

  • Lead Time：

    5 days

  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
Inquire Now
  • Product Detail

Small Lab Electrode Vacuum Slurry Mixer Mixing Machine with Containers


TMAX-SFM-7 is designed to produce coating slurry by mixing small batch of chemical and compound (500 ml Max) under vacuum to remove gas bubble and protect sample from oxidation. It has build-in pump which can vacuum the mixing container to 0.08Mpa(600 torr) and the stepless mixing speed variates from 0 to 320rpm. The vibration plate is located at the bottom to remove gas bubble before vacuum mixing and disperse the slurry after mixing to ensure better uniformity. It is excellent for preparing battery electrode paste and various ceramic materials in research lab.



Voltage Input

Single Phase 110VAC or 220VAC ( please choose from product  option bar ) 220V AC Power plug is not included.  Please click here to order the plug)

Power

150W

Rotary Speed

320 rpm

Mixing Container

One 50ml stainless steel and one 200ml aluminum container are included.  (It can be customized)

Vacuum pump

Built in

Vacuum Level

-0.08~0.09 Mpa

Vibration Plate

Vibrating at 1000 Hz

Dimensions

13''L x 12''W x 21''H

Shipping Dimensions

16''L x 15''W x 24''H

Net Weight

70 lbs

Compliance

CE certified


Slurry Mixer

Slurry Mixer

Slurry Mixer

Slurry Mixer

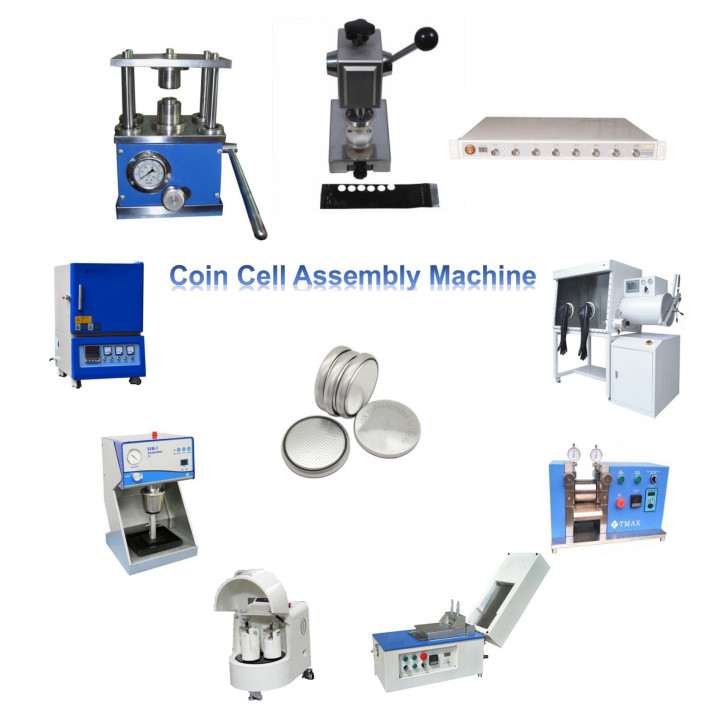

Coin Cell Equipment





Related Tags : Lab Vacuum Mixer Slurry Mixer Small Vacuum Mixer Vacuum Mixer
