Split Test Cell for Lithium Air Battery Research

Wechat:17720812054

Skype and Whatsapp:+8617720812054

Email:Beata@batterymaking.com


  • Item NO.:

    TMAX-STC-LI-AIR
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    In stock
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Product Detail

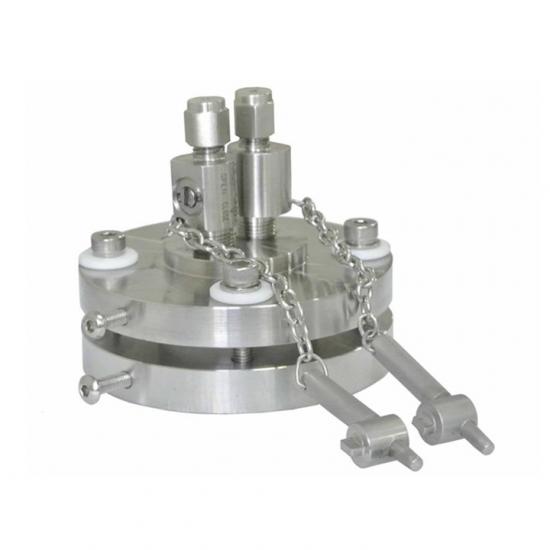

Split Test Cell for Lithium Air Battery Research


1. The EQ-STC-LI-AIR is Split Test Cell for Lithium Air Battery Research.

2. You can control air flow pressure and test various anode and cathode material at easy.


Structure

1.     Stainless Steel Structure with internal Silver-Clad surface treatment ensures high electrical conductivity and good corrosion protection

2.     Two electrodes design

3.     Electrolyte corrosive-proof PTFE Guide Sleeve and Sealing O-rings

4.     Compact design fits in any benchtop glove boxes

5.     Grooved area on lower split to fixed position of the anode electrode

Cell Thickness

1~3mm (cathode+separator+anode)

Bottom Recesss Area

16mm Dia. (The recess area can accommodate the electrodes with size upto 16mm dia.)

Max. Working Temperature

200°C

Valves & Fittings

Two Stainless Steel needle valves and 1/16" tube connector is installed on both gas inlet and outlet

Warranty

One Year limited manufacture warranty with lifetime support

Dimensions

   Φ80×62mm

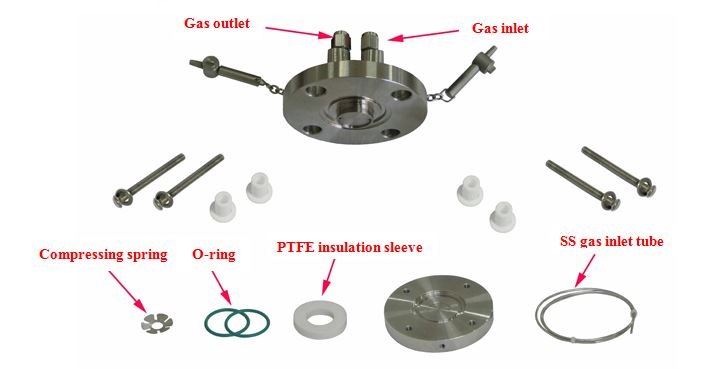

Split Test Cell

Split Test Cell

Split Test Cell
