Stainless Steel Lab Tester Coin Cell Three-Electrode Split Test Cell With Mechanical Pressure Gauge for Lithium Battery R&D

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-Three-Electrode

  • Payment:

    L/C,T/T,Western Union, Paypal

  • Lead Time：

    5 days

  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
Inquire Now
  • Product Detail

Stainless Steel Lab Tester Coin Cell Three-Electrode Split Test Cell With Mechanical Pressure Gauge for Lithium Battery R&D

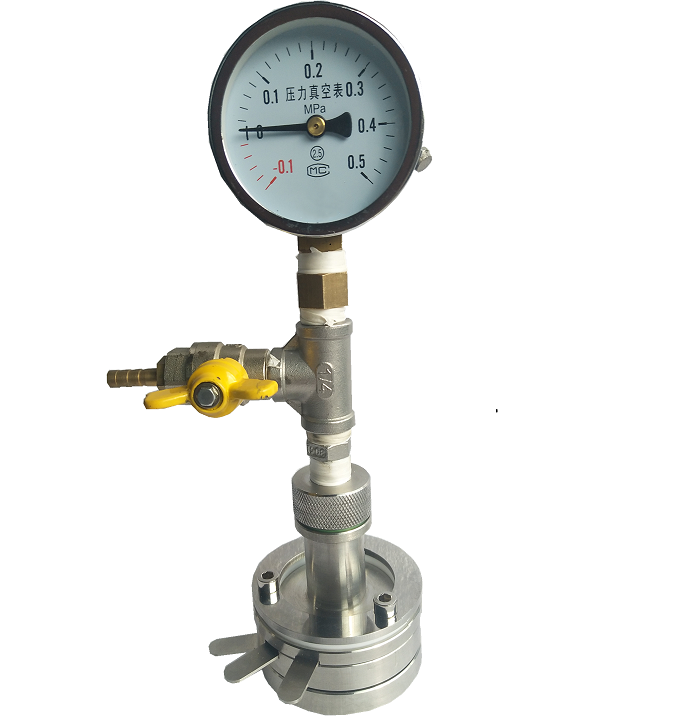

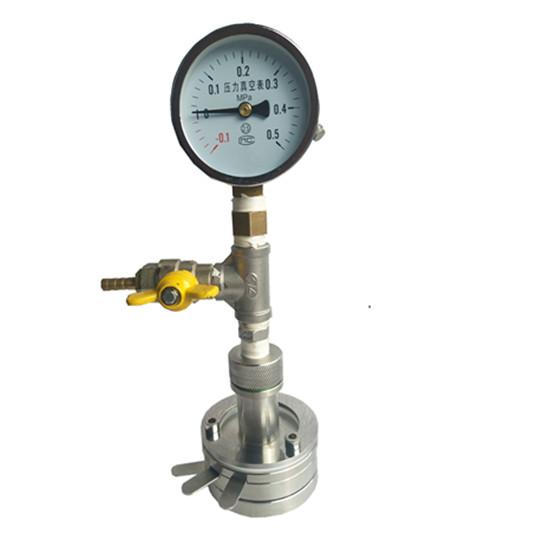

TMAX-Three-Electrode is a three-electrode split cell to test anode/cathode with reference electrode in between. It has a mechanical pressure gauge to monitor the air pressure inside chemical reaction chamber and a 1/8'' barb inlet/outlet with needle valve for gas easy in/out.


Model

TMAX-Three-Electrode

Features

1) Full stainless steel structure ( SS304)

2) Silicon O-ring in between the three plates to ensure good sealing and work up to 250 °C

3) Spring load on top to accept various thickness electrode

4) Easy to separate cell after test

5) Small enough to be put in and out from glove box

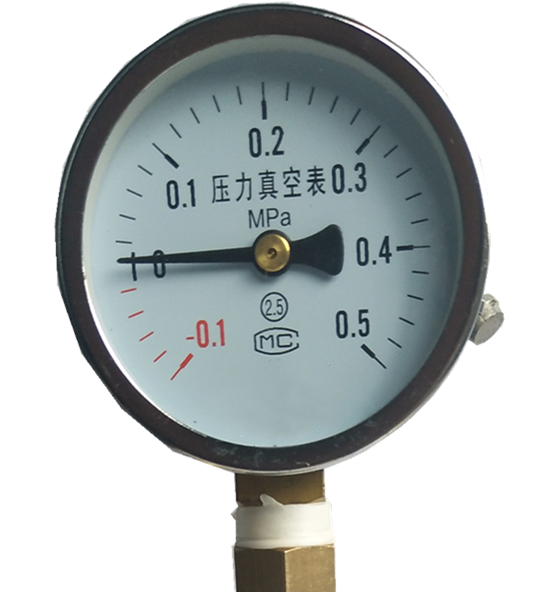

6) Mechanical Pressure Gauge: 1/4NPS Fitting (call for price and delivery time if need digital pressure gauge)

7) Niddle valve with 1/4" pipe adaptor

Specifications

Diameter insert:24 mm

Pressure Range: -0.1Mpa-0.5Mpa (0 Mpa as atmosphere)



 Three Electrode Cell                         Three Electrode Cell

                           Three Electrode Cell





Related Tags : Three Electrode Cell Three Electrode Electrochemical Cell Three Electrode Test Pressure Gauge Pressure Test Gauge
