Supercapacitor Electric Riveting Press Machine For Supercapacitor Small Batch Production

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-SY1160
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

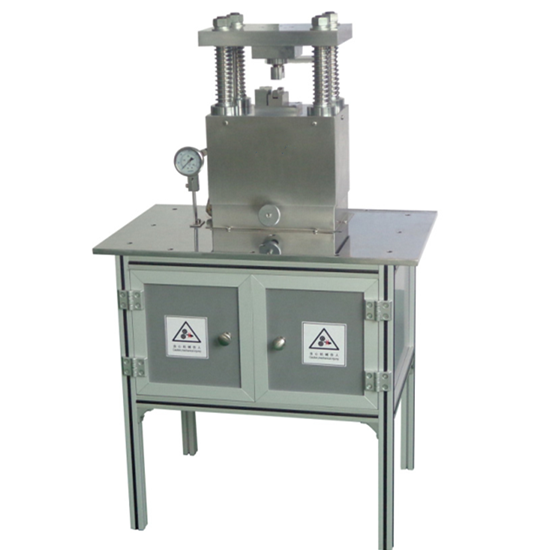

Supercapacitor Electric Riveting Press Machine For Supercapacitor Small Batch Production




This equipment is suitable for laboratory trial production or small batch production.

The riveting height is adjustable and easy to use.

The work surface is hard chrome-plated.

The riveting speed can be adjusted.

The riveting pressure can be controlled.



Technical parameters:

Battery specification

 ø22~ø35mm

The outer diameter of the upper cover of the battery

  ø20.5~ø33.5mm

Cell core cover terminal spacing

  10mm

Battery core cover terminal outer diameter

  ø2.5mm

Chuck stroke

  20~40mm

Throat depth

  150mm

Screw

  M16×2.0

Dimensions

800 (L) x 520 (W) x 1000 (H) mm

Weight

80KG
