2000W Ultrasonic Tab Welder for Lithium Ion Battery Metal Welding

Wechat:17720812054

Skype and Whatsapp:+8617720812054

Email:Beata@batterymaking.com


  • Item NO.:

    TMAX-VS-24B
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    In stock
  • Certificate:

    CE ROHS Certificate
  • Product Detail

2000W Ultrasonic Tab Welder for Lithium Ion Battery Metal Welding

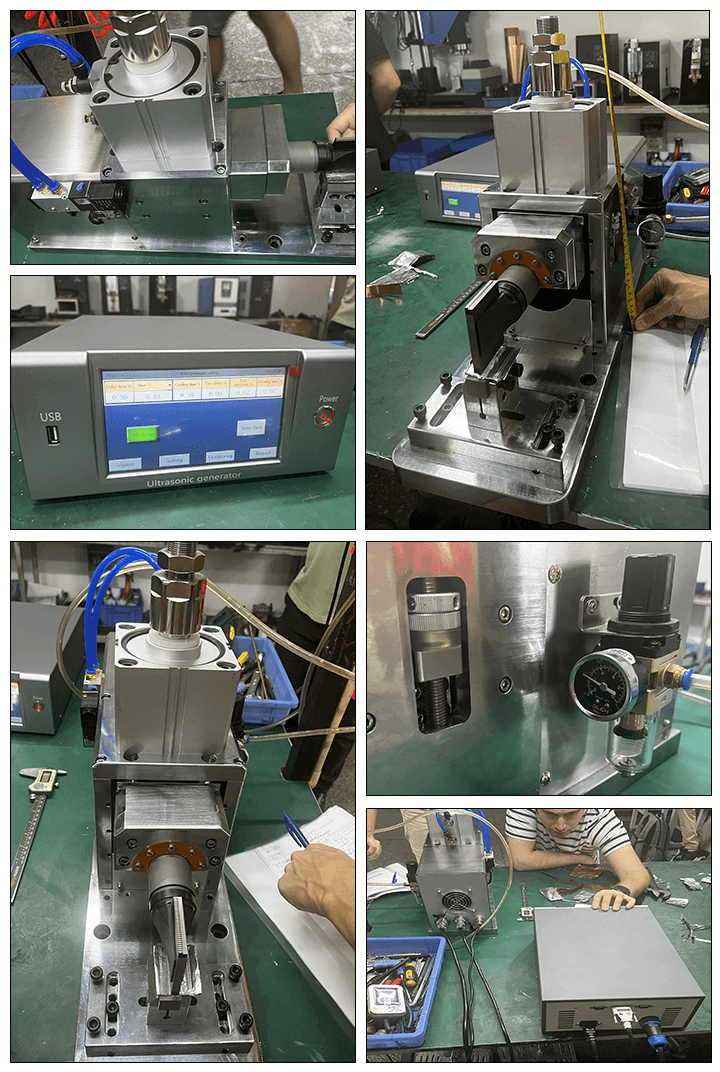

TMAX-VS-24B is a CE Certified ultrasonic metal welder with touch-screen controller. It is designed for welding stacked electrode foils/sheets and tabs onto current collectors to prepare Li-ion pouch cells & cylindrical cells.

The 2000w battery welder can weld stacked electrode with 10-35 layers aluminum foil or copper foil with Al tab and Nickel tab.



Note:If you are not quite clear about what welder would be suitable for you,please consult the sales manager with following parameters,they will find a solution for you:

1. Weld material
2. Thickness of the material

3. Layer number of material


Features

Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types of metals such as Au, Fe, Ni, Ag...).

Input Voltage

AC 110V  or 220V +/-10%, 50/60Hz

Max. Power Consumption

2200Wcan be customized

Welding Area

4mm(L) x 4mm(W)can be customized

Welding Head

The welding heads and welding base are included for welding both aluminum & copper current collectors from 2 to 30 layers

Ultrasonic Frequency

40K Hzcan be customized

Product Dimensions

1.     Controller: 360mm(L) x 480mm(W) x 200mm(H)

2.     Welder: 200mm(L) x 460mm(W) x 270mm(H)

Net Weight

70kg

Compliance

CE Certificate

Warranty

One Year limited warranty with lifetime support

 Recommendation

For the pouch cell assembly, we also recommend you the following items:

       Ultrasonic Welder                 Ultrasonic Welder                 Ultrasonic Welder

 Forming machine             Hot sealer with tab      Vacuuming seal   Ultrasonic Welder                   Ultrasonic Welder            Ultrasonic Welder

    Stacking machine               Die Cutter          Al Laminated Film



Ultrasonic Welder

Ultrasonic Welder

Ultrasonic Welder

Ultrasonic Welder

Ultrasonic Welder
