High-precision Automatic 18650 Battery Single Side Spot Welding Machine

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-DH10000
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

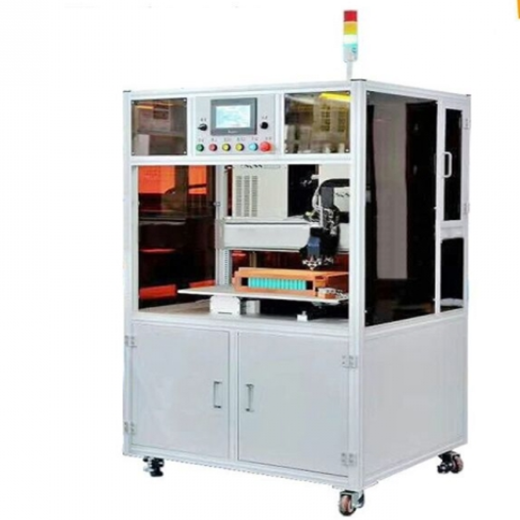

High-precision Automatic 18650 Battery Single Side Spot Welding Machine


This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding.

Features :

1.Support break point start, support automatic start and manual start mode conversion.

2.It has a false spot welding and out of spot welding alarm function.

3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.

4.Welding needle replacement forecast reminder.

5.Own welding current monitoring system, real-time monitoring of welding current.



Model

TMAX-DH-10000

X-axis travel

380mm

Y-axis travel

540mm

Spot welding speed

0.5s / point; 1600pcs / h

Maximum speed of motor drive

1000mm/s

The maximum number of batteries loaded

300pcs (standard 18650 lithium battery)

Number of groups for storing files

99 groups

Operating system

Embedded system + man-machine screen

Transmission

Stepper + imported precision linear guide (optional servo + screw)

Power supply

Single-phase  220V ± 10% / 50Hz ± 10%

Power

<500w

Air supply

0.3 ~ 0.4Mpa

Weight

200KG

Dimensions

About 1000mm*1000mm*1800mm

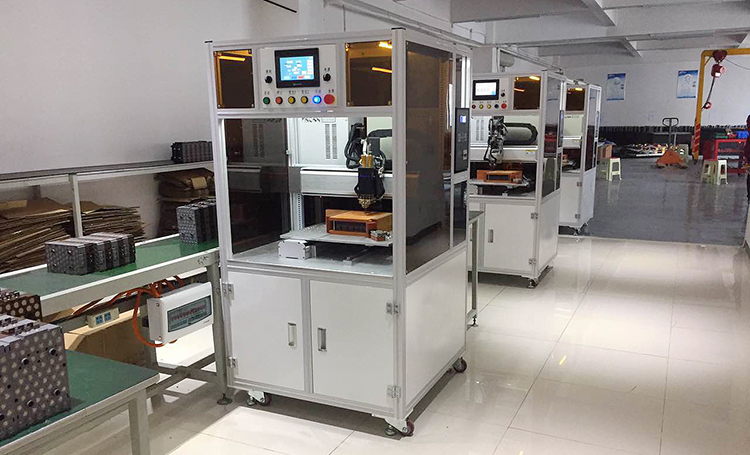

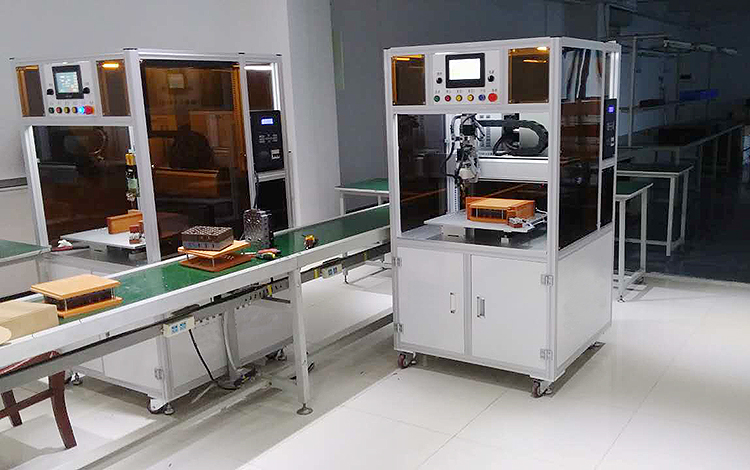

Product Display

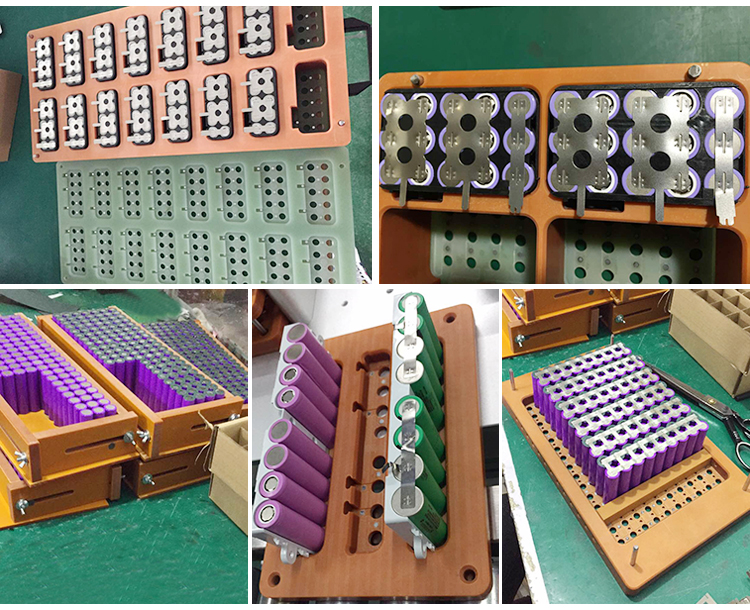

Welding Clamp Display
