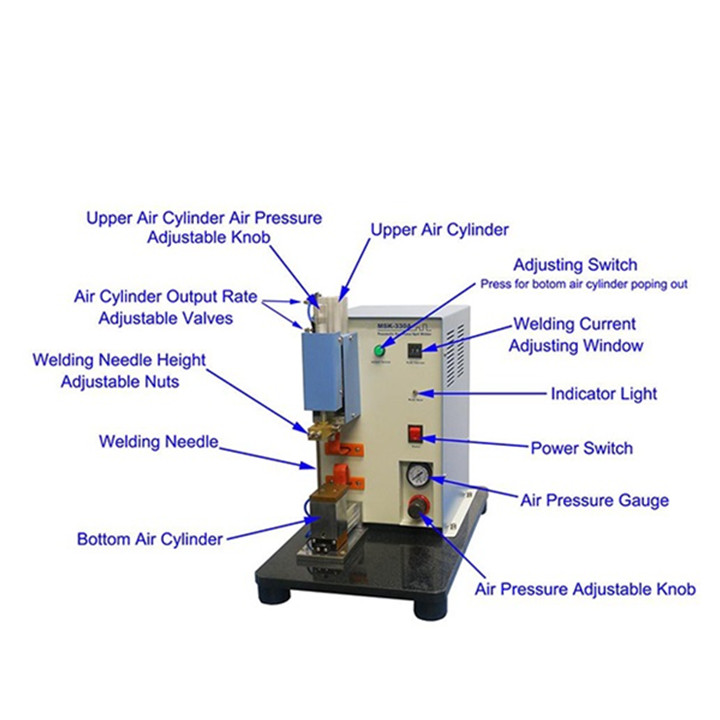

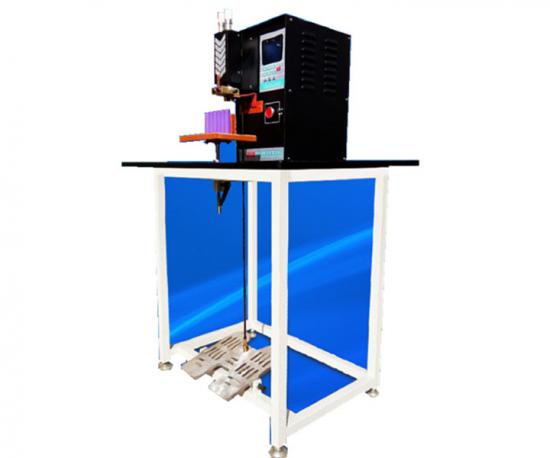

Pneumatic Double Point Spot Welding Machine

Power Supply	220-240V, Single Phase 50/60Hz
Max. Power	10KW
Air Pressure Range	0.1 - 0.7 Mpa ( air compressor is required)
Welding Current	2500A
Welding Thickness	0.03 - 0.25mm
Operation Temperature	-20 - 40℃
Controller	Controlled by microcontroller,achieve monopulse, dipulse, multiple-pulse welding
Pressure	The pressure applied on the welding needle can be adjusted independently and easy to operate
Design	1.      Unique Photoelectric switch design 2.      Good appearance, small size and light weight 3.      Welding spot looks beautiful,free spark, stable welding current
Product Dimensions	L800×W600×H130mm
Net Weight	30kg
Compliance	CE Certificate
Warranty	One Year limited warranty with lifetime support
