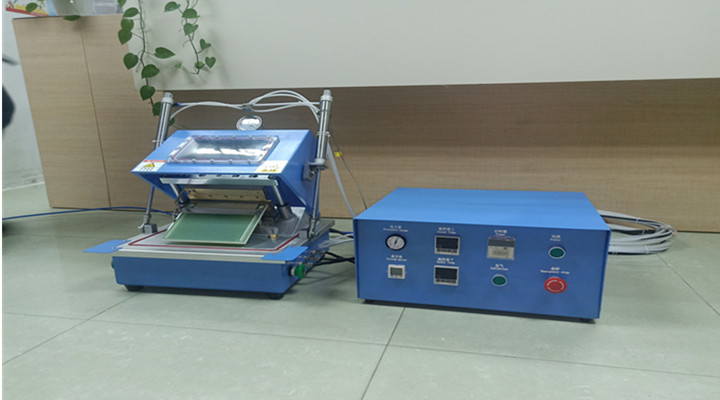

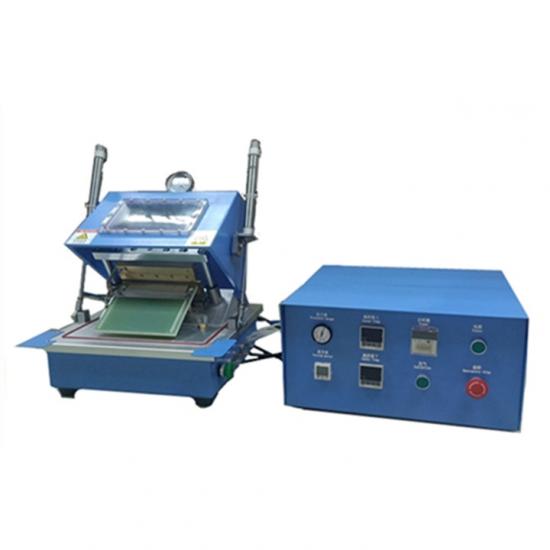

3-In-1 Hot Heat Sealer Sealing Machine for Pouch Cell

• the preliminary sealing top and side of the pouch cell before electrolyte injection.
• the vacuum sealing for the pouch case after injection of electrolyte in the glove box.
• the vacuum standing for the electrolyte diffusion and degassing .

It is designed for Li-S pouch cell sealer preparation in glove-box for the space saving.

Model	TMAX-TF200
Structure	Standard split unit   Control unit is outside glovebox

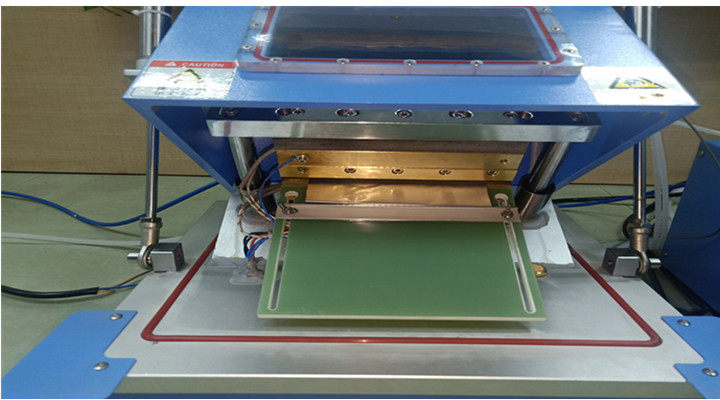

Features	Sealing Mode (Top，Side  and vacuum ): · TMAX-TF with Rubber Sealing blade and Manual Footswitch is specially designed for hot sealing the top side of the pouch cell with the tab extruded. Unlike hard type sealing blade, the soft type sealing blade is able to eliminate the sealing gap caused by the battery taps. · Vacuum Sealing Mode: After electrolyte injection, The device is able to perform the final vacuum sealing for the pouch cell.  · Vacuum Standing Mode:  After the vacuum sealing,  The device is able to do the vacuum standing for the electrolyte diffusion and degassing. The vacuum timer would be used for the standing time control.
Max. Sealing Dimensions	200mm(L) x 150mm(W)
Edge Sealing Width	5mm
Sealing Blade	Soft type (with rubber, suitable for sealing case with tab in between)
Power Supply	110V or 208-240V selectable, Single Phase 50/60Hz
Max. Power	600W
Vacuum Level	· -90 kPa Max. · The vacuum pump is not included.
Sealing Pressure	· 0~7Kg/cm² adjustable: Vacuum chamber lid and sealing die to need to be driven gas, Recommended driven gas pressure 60 psi. · Please use high purity inert gasses (Ar or N2), when operating in the glovebox. Using Air Compressor driven when operating outside the glove box. · Air Compressor and fitting are not included. · Attention: If a gas cylinder is used instead of air compressor, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.
Sealing Temperature	50 - 250°C adjustable with control accuracy of  +/-2°C
Heating Timer	0 - 99 seconds Adjustable
Glove Box Compatibility	It can be used in glove box. Please use Inert gas when operating in the glove box.
Compliance	· CE Certified
Warranty	One Year limited warranty with lifetime support
Product Dimensions	· MSK-115-III · Chamber Closed: 470mm(L) x 430mm(W) x 480mm(H) · Chamber opened: 470mm(L) x 430mm(W) x 560mm(H) · Control Unit: 420mm(L) x 320mm(W) x 220mm(H)
Net Weight	150 lbs
Shipping Weight & Dimension	215 lbs; 48"x40"x29"
