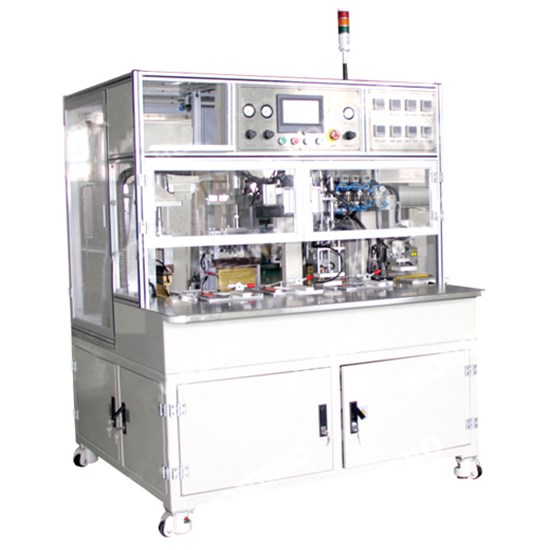

Lithium Battery Heat Sealing Machine Heater for Pouch Cell Production

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-A-012
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Lithium Battery Heat Sealing Machine Heater for Pouch Cell Production



Functions
 This equipment is suitable for the flexible packaging lithium batteries semi-automatic packaging. Mainly included the top sealing, lateral sealing, Angle sealing, insulation test, fine exactly the side sealing, and other functions.


Features
 Transfer jig, servo drive;
 Under the top sealing, side seal head is fixed, the seal is more stable;
 Insulation test can be adjusted independently;
 Top sealing, lateral sealing head can auto correct;
 Battery secondary positioning, exact edge sealing side;
 Batteries transfer, electric driving.


Technical Parameters(for reference)

ITEM

DCF150

DCF200

Measure

1300*1650*1580mm(L*W*H)

1350*1850*1580mm(L*W*H)

Weight

About 1T

About 1T

Power

AC220V/50HZ, 3.5KW

AC220V/50HZ, 3.5KW

Air source

0.6Mpa,100L/Min

0.6Mpa,100L/Min

Applicable range

Top seal65-150mm,     side seal50-145mm

Top seal80-190mm,     side seal60-180mm

Capacity

100-300EA/H

100-300EA/H

Action

99%

99%
