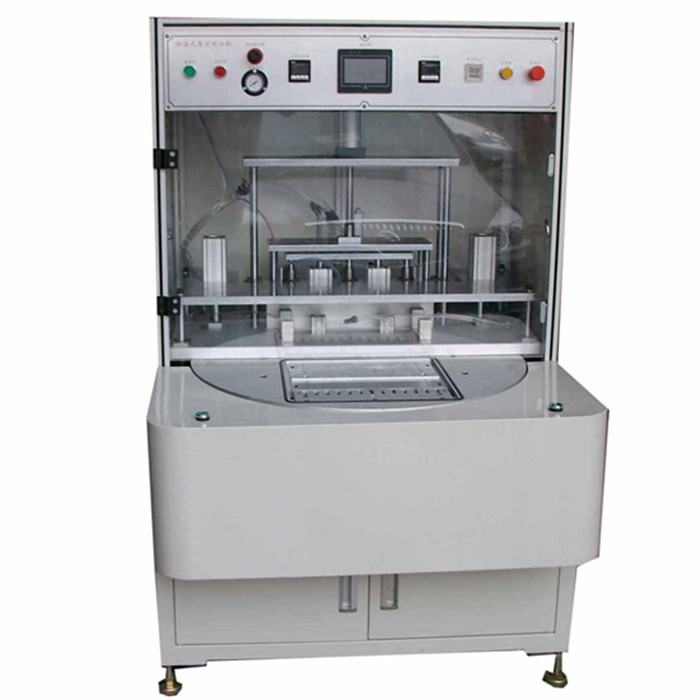

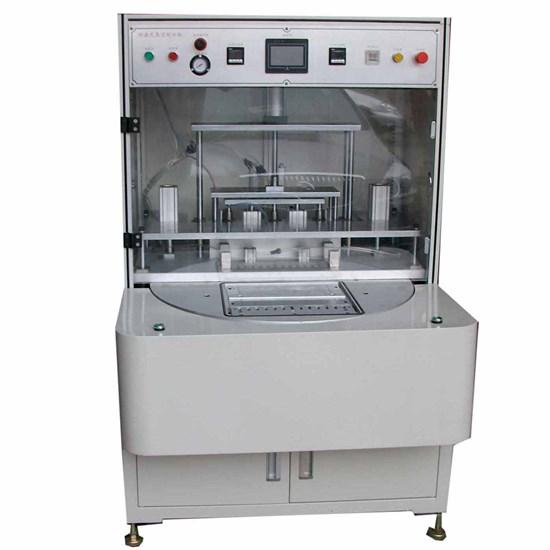

Lithium ion Cell Vacuum Sealing Machine for Pouch Cell Making

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-sealingmachine1
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Lithium ion Cell Vacuum Sealing Machine for Pouch Cell Making


Features

1.Suitable for soft packing lithium core top-side heating vacuum sealing

2.The 4 stations turntable structure, cam positioning, precision bias error is less than ± 30

3.To configure a single head pressure regulator

4.Import PLC, touch screen control display, imported thermostat, error of ± 2 °C

5.Fixture locating detection, double-side heating, temperature alarm, screen protection

6.Using the programmable controller PLC practical automatic control, touch screen to realize man-machine dialogue, convenient operation


Technical Parameters

Main technical

parameters

TMAX-TS001

       TMAX-TS002

TMAX-TS003

Applicable battery size(L*W*H)

≤180*120*8mm

≤250*210*10mm

≤320*210*10mm

Sealing head length

200mm

280mm

330mm

Sealing stamp width

2-5mm

2-10mm

2-10mm

Parallelism of the  sealing head

±0.01mm

±0.01mm

±0.01mm

Production capacity

200-600pcs/H

150-500pcs/H

100-450pcs/H

Source voltage

AC 220V

AC 220V

AC 220V

power

1.2KW

1.8KW

1.8KW

Size(L*W*H)

640*640*1450mm

900*800*1600mm

900*1000*1600mm

Weight

300kg

 450kg

550kg

Air supply

0.6-0.7Mpa 10L/S

0.6-0.7Mpa 10L/S

0.6-0.7Mpa 10L/S

Vacuum supply

 -0.095Mpa 20L/S

-0.095Mpa 20L/S

-0.095Mpa 20L/S
