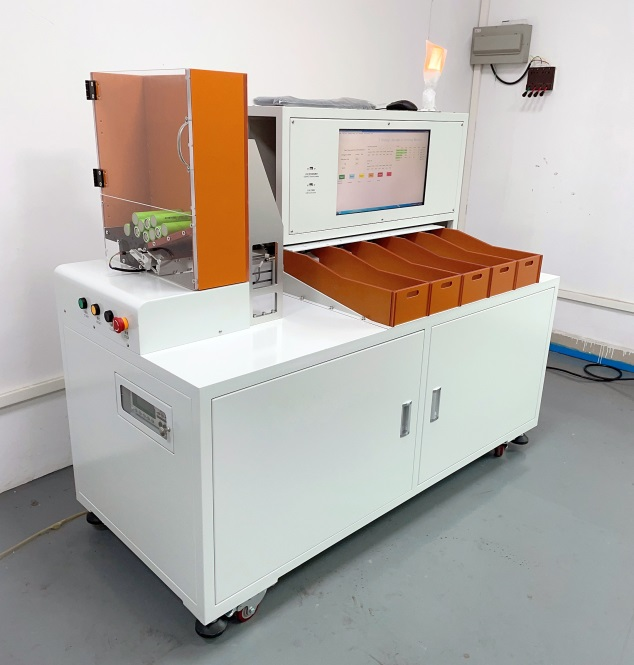

5 Channel Automatic Sorting Machine for 32140 cylindrical Cells

I. Equipment adaptation range

32140 cell universal sorting and grouping.

II.Equipment Overview

The TMAX-FN-5 channel sorting machine is suitable for sorting and grouping testing of 32140 cells. This machine uses a material trough hopper for feeding, which can analyze and save battery test data.

Defective batteries are uniquely removed, and batteries that have been sorted and paired are collected by the receiving trough, making it easy for operators to manage.

Optional: 5channels or 10 channels/ IR testers optional: HK 3561 OR HIOKI 3561 IR tester.

III.Functional characteristics

*Equipped with industrial control integration, all parameters of the battery can be traced and tracked, facilitating data management and simple operation.

Management functions such as battery voltage, battery internal resistance, and configuration information.

*Adapted to various types of batteries, easy to replace and operate.

*Built in high-precision and universal HK3561 internal resistance tester, with high testing accuracy and fast speed.

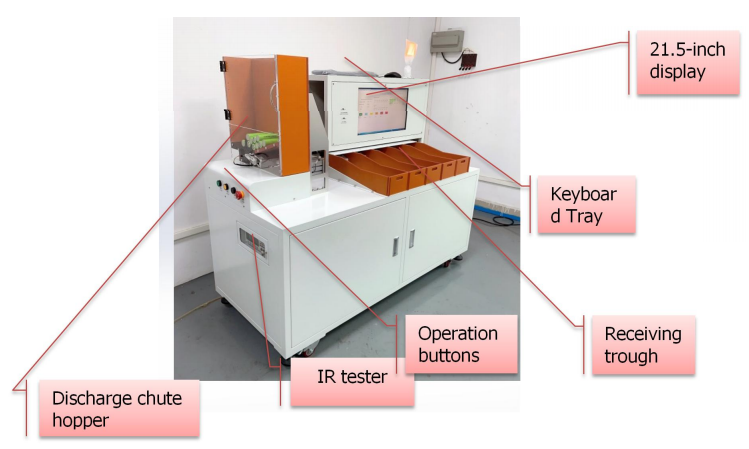

IV.Equipment structure

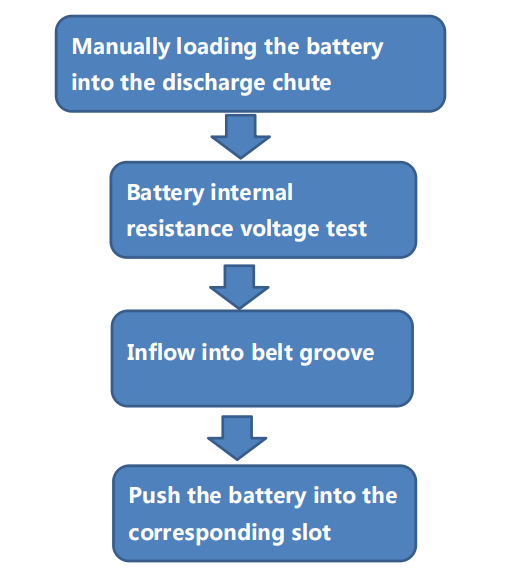

V.Workflow

VI.Specifications:

Equipment efficiency	40～50PPM
Equipment turnover rate	≥95%
Number of sorting channels	5 (4 good products, 1 defective product)
Instrument internal resistance detection accuracy	+/-0.5% rdg, display resolution 0.01 milliohm
Instrument voltage detection accuracy	+/-0.05% rdg, display resolution: 0.1 mV
Repetitive error in internal resistance detection	<1 milliohm (AC internal resistance detection method)
Voltage detection repetition error	<1 millivolt
Control system	PC industrial computer (embedded system)
Input power consumption	1KW
Input power supply	AC220V/50HZ
Compressed air source	≥0.6Mpa
monitor	21.5-inch Philips large display screen
Equipment appearance reference size	LWH=16207101360mm
Overall weight	120KG

VII.List of Key Components

Key component names	Brand	Origin
Motion control system	TMAX	Independent research and development
IPC	Jianuo	China
Monitor	Philips 21.5 inches	China
Stepper motor	Beifu	China
Driver	Beifu	China

Power Supply	Mingwei/Jin Shengyang	Taiwan/China
Solenoid valve	Yadeke, Xingchen	Taiwan/China
Cylinder	Yadeke, Xingchen	Taiwan/China
Photoelectric sensor	Omron, Panasonic, Huayifeng	Japan/China
Internal resistance tester	HIOKI 3561	China

VIII.Machine parameters ：

8.1 Equipment power supply: two-phase~220V ± 10%/50Hz ± 10%

8.2 Overall power: 1000W

8.3 Equipment air pressure: 0.5~0.6Mpa

8.4 Equipment weight: 120 KG;

8.5 External dimensions：L*W*H=1620*710*1360mm；

8.6 Operating Environment:

8.6.1 Please avoid using this equipment in places with high temperature, high humidity, vibration or impact, metal powder, and welding spatter. Pay attention to the control of the ambient temperature around the equipment;

8.6.2 Equipment must be grounded and separated from personnel grounding wires;

8.7 Equipment service life: more than 5 years.

It can also connect with 32140/33140 paper sticking machine：

Battery Pack Assembly Equipment
