5 Channel Lithium Cylindrical Cells 18650/26650/32650/21700 Sorting Machine

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-BS5

  • Payment:

    L/C,T/T,Western Union, Paypal

  • Product Origin:

    China

  • Shipping Port:

    Xiamen

  • Lead Time：

    5 days

  • Certificate:

    CE ROHS Certificate
Inquire Now
  • Product Detail

5 Channel Lithium Cylindrical Cells 18650/26650/32650/21700 Sorting Machine


Features:

1.Products with high precision internal resistance、Voltage、automatic test system.

2.The device is set according to the settings Internal resistance voltage,

3. Accurate delivery of cores to designated gears.

4 .Hopper put in 500 pcs High production efficiency easy to operate.

5.Stick Barley paper 4200pcs/Hour high stability.

6.Can be docked with automatic veneer cushion machine，Saving labor.


Specifications:

Voltage

AC220V,50Hz

Compressed Air

0.4-0.7Mpa

Internal Resistance

Hioki3561 or HK3561

Measurement of Internal Resistance

Range:0-60mΩ

Accurace:± 0.5% rdg

Resolving power: 0.1mΩ

Internal Pressure Measurement

Range:0-10V

Accurace:± 0.015% rdg

Resolving power: 0.1mV

Size(L x w x H)

980x520x1360mm

Production Efficiency

4200PCS/hour, single pad 1pcs

Control Device

7 inch Touch Screen

Sorting Speed

60-70PPM



Equipment Configuration:

Serial No.

Spare Parts

Brand

1

Air Cylinder

SMC、CKD

2

Solenoid Valve

SMC

3

Linear Guide Rail

TPI

4

Electric Relay

OMRON

5

PLC

TouchWin

6

Inductorium

OMRON、SUNX

7

Button

Goncon

9

Pilot Lamp

Goncon

10

Tester

Hioki3561 or HK3561



 Details:

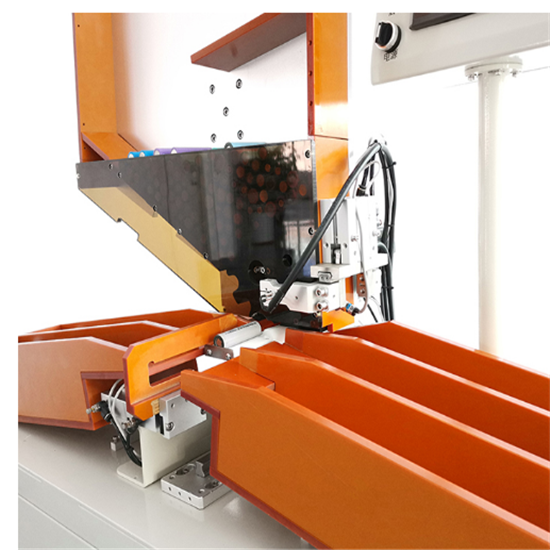

5 Channel Battery Sorter



5 Channel Battery Sorter
