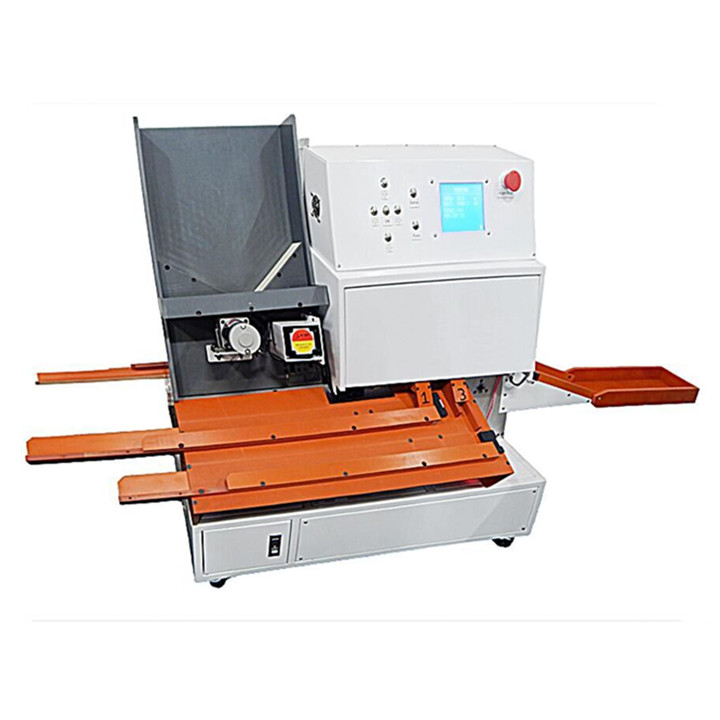

5 Channels Automatic Battery Sorter/ Selector For 18650, 26650 And 21700 Cell

5 Channels Automatic Battery Sorter/ Selector For 18650, 26650 And 21700 Cell

• MSK-BS-LD is a high throughput automatic Battery Sorter/Selector for sorting cylindrical 18650, 26650 and 21700 battery cells by voltage and impedance upto 5 groups.




  Feature	· A must have equipment for Battery Pack Manufacturer! · 5 Channel automatic cell sorter is designed to sort cylindrical 18650, 26650 and 21700 cells · Sort by cell's voltage and impedance up to 5 groups · Voltage measurement range: 0 ~ 10V ± 0.01% rdg (0.1 mV/scale) · Impedance measurement range: 0 ~ 60mΩ ± 0.5 rdg (0.1mΩ/scale) · Automatic sorting control · Fast sorting speed (3000 batteries/hr) · Easy to refill cells during the process · Long post test cell trail · 4 wheels design, easy to move the machine to any operating place.
  Input Power	· Voltage: 220 VAC (50Hz/60Hz) · Power ≤ 150W
  LCD Control Panel Screen	· 5.7"
  Operation Temperature	· 0-50℃
  Compliance	· MET, UL or TUV certificate is available at extra cost
  Warning	· Avoid putting objects other than 18650 batteries in pretest battery space · Be careful not to pinch fingers in operating conveyor · Do not open the machine when it is operating · Remove bracelets or any other jewelries before operation · Always check the quantity of the batteries before and after the test in order to prevent blocking the conveyor inside the machine.
  Warranty	· One-year limited warranty with lifetime support
