Features

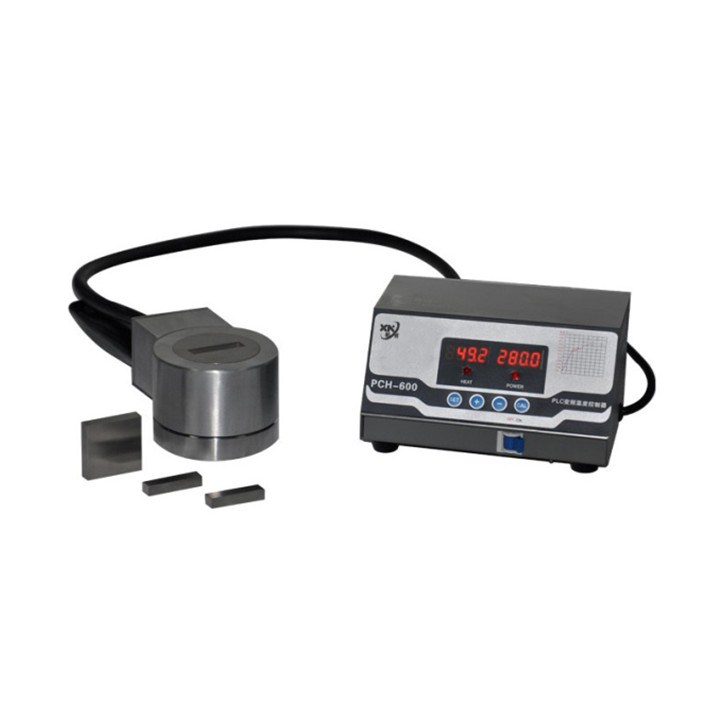

Rectangular electric heating mold is a kind of heating mold developed based on an ordinary square mold that can heat and press mold samples through an intelligent temperature controller to control temperature. This type of mold can be used to press powder or granular samples into rectangles, strips, squares, triangles, and other shapes through a press. The specific mold size and shape can be customized according to customer needs. Suitable for rubber, plastics, leather, chemicals, paints, electronic appliances, textiles, hardware, and other major fields. It is a qualitative supporting equipment for the engineering and technical personnel of various universities, colleges, and research institutes to carry out spectral detection and analysis.

Technical parameter

Name	Cylindrical electric heating mold
Compressible sample shape	Rectangle, long strip, square, triangle, etc., other shapes are customized
Mold heating temperature	RT-300℃(500℃ high temperature mold can be customized)
Thermostat type	PLC program digital temperature controller, room temperature -600.0℃, accuracy 0.1℃
Power	220V/300W
Common mold specifications	Usually within 3-40mm, length and width are customized
Mold material	Alloy tool steel: Cr12MoV (can be customized hard alloy steel)
Hardness of die indenter	HRC60-HRC62
Mold cavity depth	45mm
