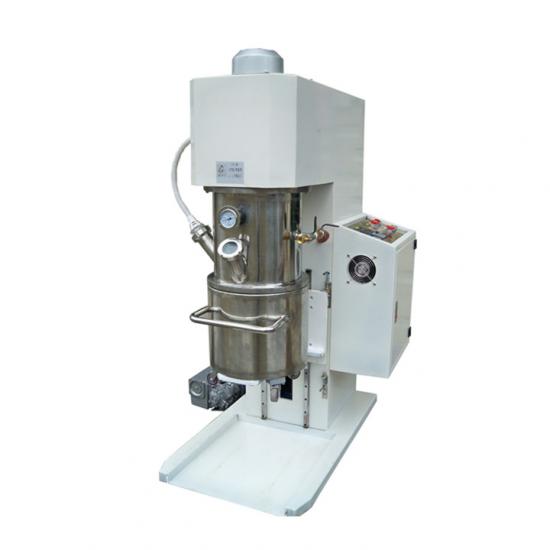

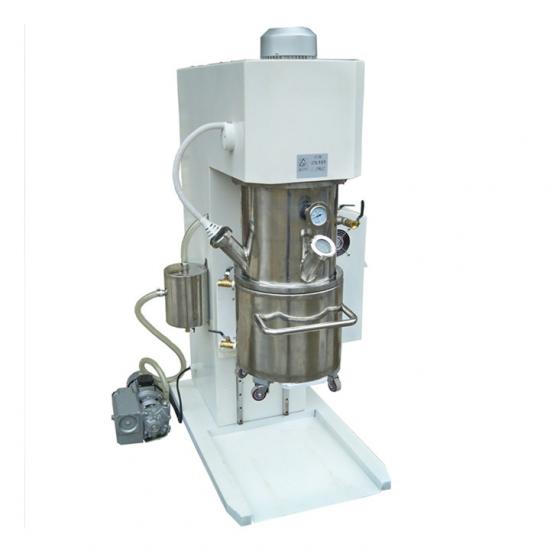

5L to 50L Vacuum Planetary Mixer Mixing Machine For Cylindrical Cell Assembly

Wechat:17720812054

Skype and Whatsapp:+8617720812054

Email:Beata@batterymaking.com


  • Item NO.:

    TMAX-PVM-5L
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    In stock
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Product Detail

5L to 50L Vacuum Planetary Mixer Mixing Machine For Cylindrical Cell Assembly



It is a Vacuum Planetary Mixer with 5 liter containers and complete accessories for immediate use. The Slurry vacuum mixer produces multi-movements during stirring, including, revolution and rotation, double stirring shafts, single scattered shaft & scraping the walls to make slurry gas-bubble free and with extreme uniformity under vacuum.

A temperature-controlled water circulator is included to make container working at temperature range from 50ºC to 35ºC directly and water cold stainless steel tank can promise high efficiency in mixing.  GN-SFM-9 is excellent for preparing LiCoO3, LiFePO4, phosphors and ceramic slurry with excellent results in dispersion and uniformity.


Power Supply

·         Single phase, AC 208 - 240V 50/60Hz, single phase

·         Total power: 4kW

·         220V AC Power plug is not included. Please click here to order the plug)

Revolution Speed

·         Mian shaft speed: 0 - 70 rpm

·         Stirring speed: 0 - 112 rpm, motor: 2.2kW

·         Dispersing speed: 0 - 6100 rpm, motor: 1.5kW

Vacuum

·         The vacuum pump: 0.37kW built in

·         The vacuum degree: <= -0.098MPa

Lift Motor

Lifting Motor is built in ( 370W)

Bucket

·         Dimensions: Dia.240mm * H.180mm

·         Capacity: 5 Liter

·         Water cooling jacket

·         Temperatured monitor and over-temperature alarm

Beater

·         Tolerance of beater and bottom: 2-4 mm

·         Tolerance of beater and bucker wall: 2-5mm

·         Tolerance of two beaters: 3-8mm

·         Made of SS 304

Shipping Dimension & Weight

Two Pallets:
53" x 43" x 93"   800 lbs
40" x 26" x 27"   100 lbs

Overall Dimension

1000mm(L) x 800mm(W) x 1930mm(H)

Control Panel

Digital Touch Screen for efficient adjustments

Net Weight

400kg

Warranty

·         One year limited warranty with lifetime technical support

·         Rust and damage due to improper storage conditions or lack of maintenance is not covered by warranty

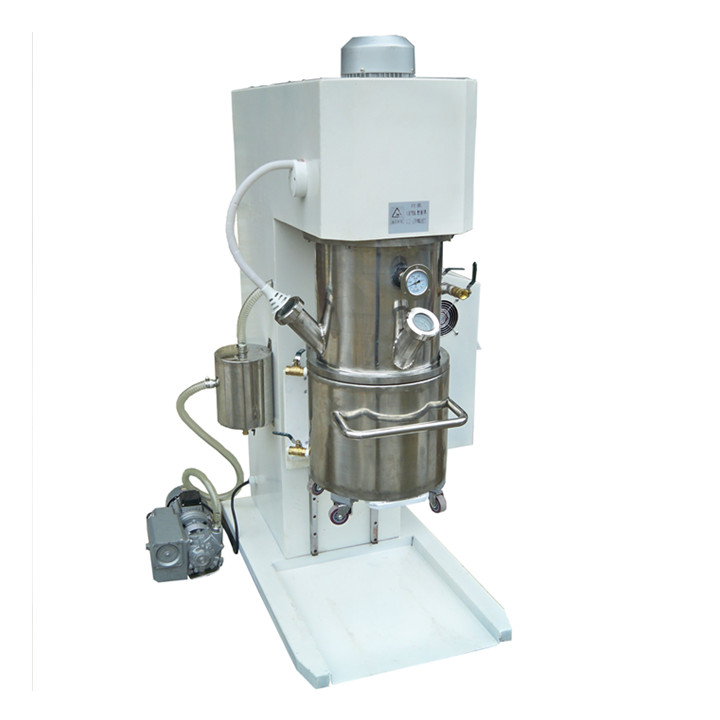

Planetary Mixer

Planetary Mixer



Cylindrical Cell Laboratory machine
