/8 Channel 5V12A Battery Testing System For Pouch Cell/Polymer Battery

8 Channel 5V12A Battery Testing System For Pouch Cell/Polymer Battery

Wechat:17720812054

Skype and Whatsapp:+8617720812054

Email:Beata@batterymaking.com


  • Item NO.:

    TMAX-XW12A
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    In stock
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Product Detail

8 Channel 5V12A Battery Testing System For Pouch Cell/Polymer Battery



1.This tester can analyze polymer and cylindrical batteries from 0.1mA to 12A, up to 5V.

2.The battery tester system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.




Items

Values

Input AC

AC 220V/110V ±10% / 50Hz

Input power

851 W

Resolution

AD16bitDA16bit

Input impendence

≥1MΩ



CV output range

25mV~5V



Min discharge voltage

1.0V for universial holder,1.5V for 2m cable

Voltage

Accuracy

± 0.05% of FS



Stability

± 0.05% of FS



Output range/channel

Range1: 5mA-1A; Range2: 1A-12A



Accuracy

± 0.05% of FS

Current

CV cut-off current

Range1: 2mA; Range2: 24mA



Stability

± 0.05% of FS



Output power/channel

60

W

Power

Stability

± 0.1% of FS



Current rsponse time

Max rising time:1ms

Time

Working step time

≤(365*24)h/step Time format-000000.000(hmsms)





Min data record interval:100ms



Data record conditions

Min voltage change10mV

Data record



Min current changeRange1: 2mA; Range2: 24mA



Frequency

10Hz



Charge modes

CCCVCCCVCP

Charge

Cut-off condition

VoltageCurrentTimeCapacity-V



Discharge modes

CCCPCRCV

Discharge

Cut-off condition

VoltageCurrentTimeCapacity-V



Charge

CCCP



Discharge

CCCP



Min pulse width

500ms

Pulse

Pulse counts

Up to 32



Chg and Dischg switch

Supported



Cut-off condition

VoltageTime

DCIR

Supported



Max cycles

65535

Cycle

Max steps

254



Cycle nest

3





● Power-off data protection





● Off-line operation mode

Protection

Safety protection

● User-defined protection conditions, such as upper and lower limited current/voltage, delay time, temperature, etc.

Channels feature

Independent pairs of closed loop for constant

Channels control mode

Independent control

Data acquisition method

Kelvin connection

Noise

<85dB

Database

MySQL

Communicatin

TCP/IP

Operating system

Windows 7/8/10 64 bit

Data export

EXCELTXTCSVPDFPlot/Graph

Disk drive

500GB

Communication port

Ethernet port

Leak Current

0.0000005mA

Channels per unit

8

Operation and storage environment requirement

Items

Values



0~40℃ (When the temperature is 25±10, the accuracy error caused by temperature change is less than 50ppm /)

Operation environment temperature

Storage environment temperature

-10~50

Operation environment humidity

≤70% RH(no moisture condensation)

Storage environment humidity

≤80% RH(no moisture condensation)

Clamps and dimensions

Items

Values

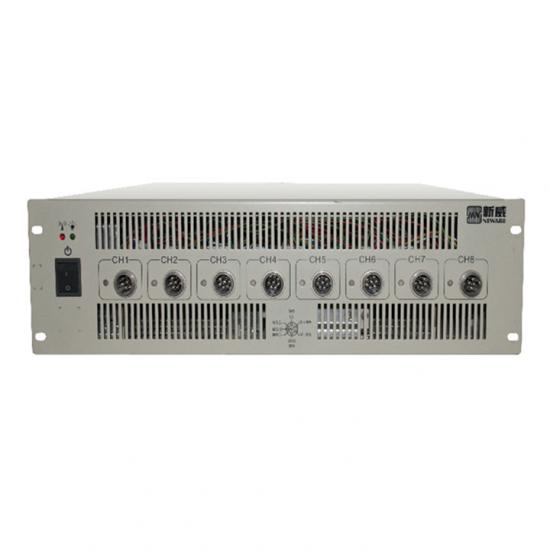

Tester pictures














Clamps pictures

Alligator

Polymer

Coin



Pictures just for reference

DimensionsW*D*H(mm)

3U3F480*730*130

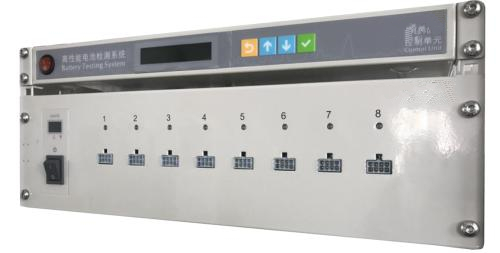

Battery Testing System

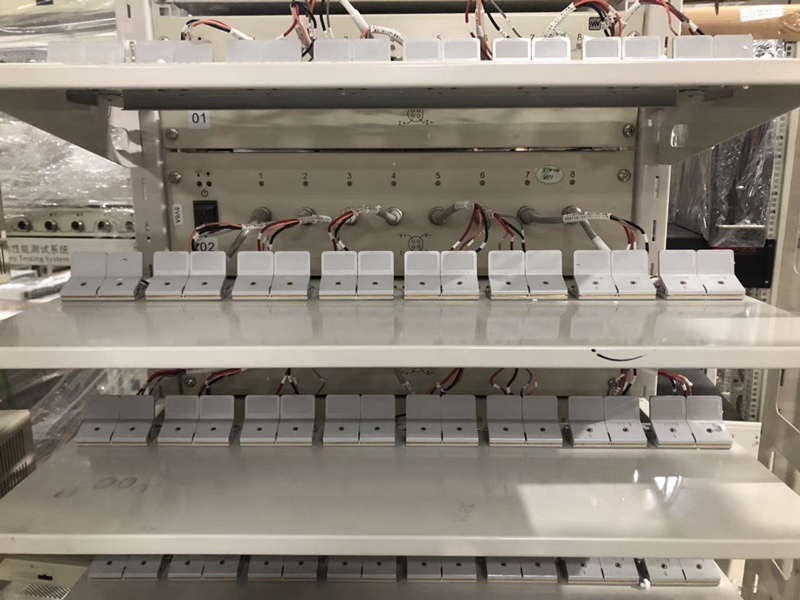

Battery Testing System

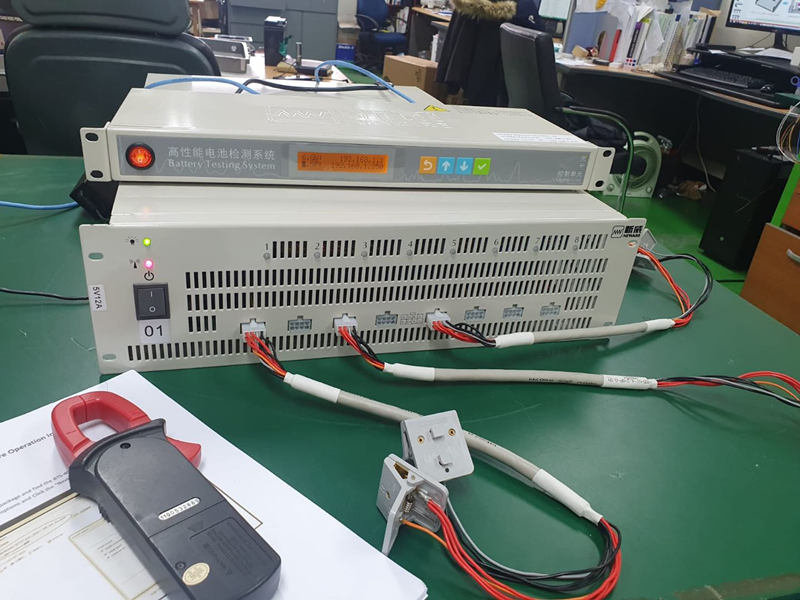

Battery Testing System
