Roller Heat Press Machine/Calender Machine For Pouch Cell Research

Wechat:17720812054

Skype and Whatsapp:+8617720812054

Email:Beata@batterymaking.com


  • Item NO.:

    TMAX-FC
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    In stock
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Product Detail

Roller Heat Press Machine/Calender Machine For Pouch Cell Research

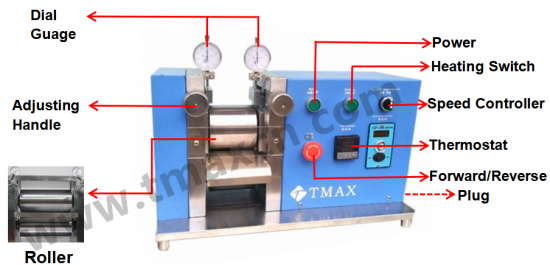

1 TMAX-DG Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.


2 The hot roller press machine has 100mm width steel rollers. Such a roller can be heated up to 150°C.


oller diameter tolerance

0.004mm

Roller Surface Hardness

62 HRC

Roller Dimensions

   100mm(Dia.) x 100mm(W)

   100mm(Dia.) x 200mm(W)

   100mm(Dia.) x 400mm(W)

   150mm(Dia.) x 200mm(W)

   150mm(Dia.) x 400mm(W)

   200mm(Dia.) x 200mm(W)

   200mm(Dia.) x 400mm(W)

Working Voltage

110V - 240V AC, 50/60Hz, automatic switch for worldwide use

Roller Material

Made from hardened tool steel (RC > 62) with Cr electroplated coating

Rolling Speed

0-40mm/s adjustable

Warning1

Never roll materials with hardness > 50HRC

Warning2

This rolling machine can be used under Ar gas

Application

Battery Equipments

Color

Request

Product Keywords

hydraulic roller press,hydraulic pressure rolling press machine,hydraulic pressure calendering machine

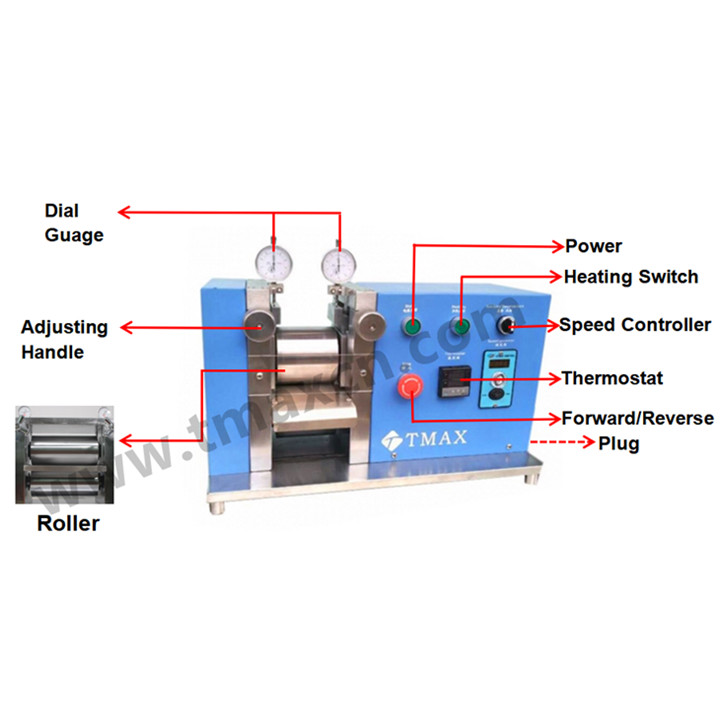

Heat Calender Maxhine

Heat Calender Maxhine


Pouch Cell Laboratory machine
