8 Channel 5V6A Battery Tester Analyzer For Pouch Cell Polymer Battery

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-BST8
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

8 Channel 5V6A Battery Tester Analyzer For Pouch Cell Polymer Battery



1. This tester can analyze polymer and cylindrical batteries from 0.1mA to 6 A, up to 5V.

2 The battery tester system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.


Items

Values

Input AC

AC 220V/110V ±10% / 50Hz

Input power

425 W

Resolution

AD16bitDA16bit

Input impendence

≥1MΩ





Voltage

CV output range

25mV~5V

Min discharge voltage

1.0V for universial holder,1.5V for 2m cable

Accuracy

± 0.05% of FS

Stability

± 0.05% of FS





Current

Output range/channel

Range1: 0.5mA-100mA; Range2: 100mA-6A

Accuracy

± 0.05% of FS

CV cut-off current

Range1: 0.2mA; Range2: 12mA

Stability

± 0.05% of FS



Power

Output power/channel

30

W

Stability

± 0.1% of FS



Time

Current rsponse time

Max rising time:1ms

Working step time

≤(365*24)h/step Time format-000000.000(hmsms)





Data record



Data record conditions

Min data record interval:100ms

Min voltage change10mV

Min current changeRange1: 0.2mA; Range2: 12mA

Frequency

10Hz



Charge

Charge modes

CCCVCCCVCP

Cut-off condition

VoltageCurrentTimeCapacity-V



Discharge

Discharge modes

CCCPCRCV

Cut-off condition

VoltageCurrentTimeCapacity-V







Pulse

Charge

CCCP

Discharge

CCCP

Min pulse width

500ms

Pulse counts

Up to 32

Chg and Dischg switch

Supported

Cut-off condition

VoltageTime

DCIR

Supported



Cycle

Max cycles

65535

Max steps

254

Cycle nest

3





Protection





Safety protection

● Power-off data protection

● Off-line operation mode

● User-defined protection conditions, such as upper and lower limited current/voltage, delay time, temperature, etc.

Channels feature

Independent pairs of closed loop for constant

Channels control mode

Independent control

Data acquisition method

Kelvin connection

Noise

<85dB

Database

MySQL

Communicatin

TCP/IP

Operating system

Windows 7/8/10 64 bit

Data export

EXCELTXTCSVPDFPlot/Graph

Disk drive

500GB

Communication port

Ethernet port

Leak Current

0.0000005mA

Channels per unit

8

Operation and storage environment requirement

Items

Values



Operation environment temperature

0~40℃ (When the temperature is 25±10, the accuracy error caused by temperature change is less than 50ppm /)

Storage environment temperature

-10~50

Operation environment humidity

≤70% RH(no moisture condensation)

Storage environment humidity

≤80% RH(no moisture condensation)

Clamps and dimensions

Items

Values

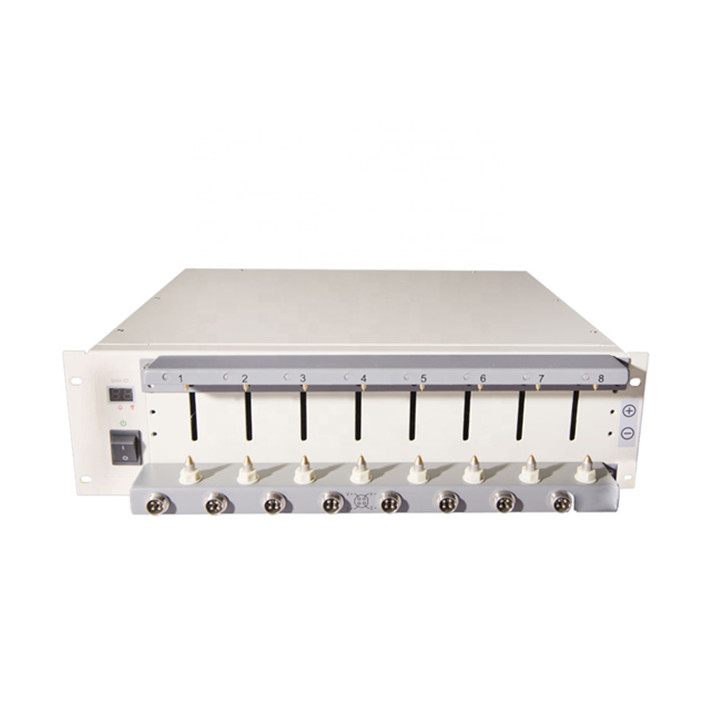

Tester pictures

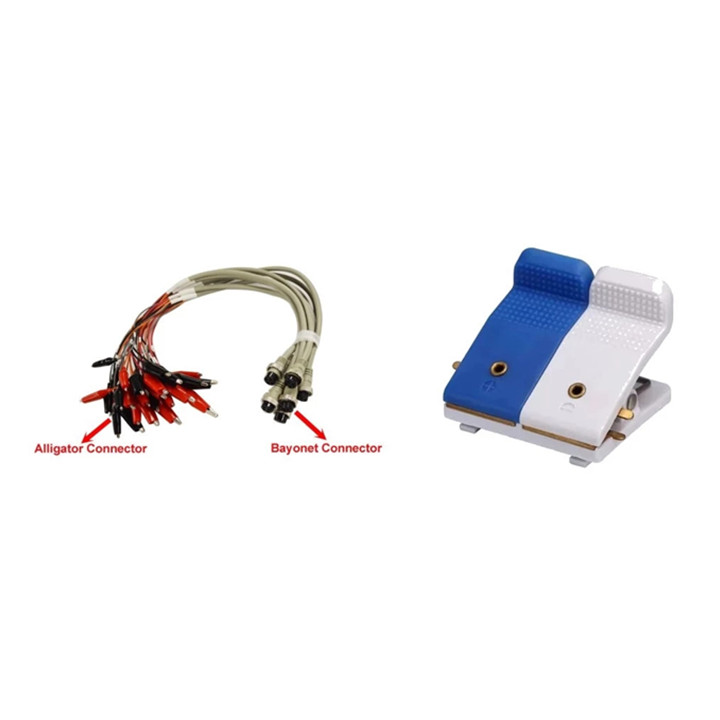

Clamps pictures









Alligator

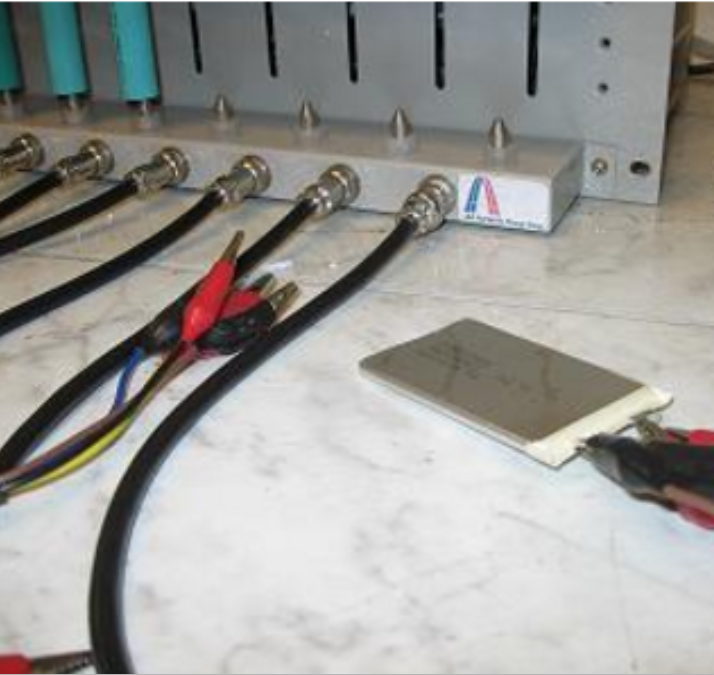

Polymer

Coin

Pictures just for reference

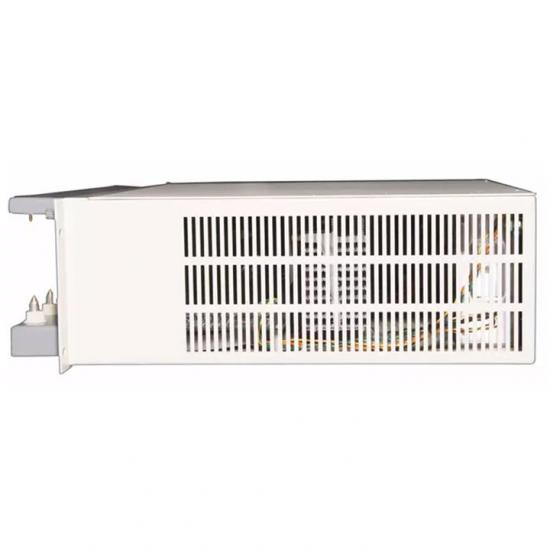

DimensionsW*D*H(mm)

3U1F480*380*130


 Battery Tester Analyzer

 Battery Tester Analyzer

 Battery Tester Analyzer



Pouch Cell Laboratory machine
