Gravity Impact Tester For Lithium Battery Safety Test

Wechat:17720812054

Skype and Whatsapp:+8617720812054

Email:Beata@batterymaking.com


  • Item NO.:

    TMAX-ZS
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    In stock
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Gravity Impact Tester For Lithium Battery Safety Test



The test sample battery shall be placed on a flat surface, and a 15.8mm (5 / 8 inch) diameter rod shall be placed in the center of the sample in a cross way. A 9.1kg weight dropped from a certain height of 610±25mm onto the sample.


Drop weight

9.1kg or 10kg

Impact height

610 mm or 1000 mm

Impact mode

lift the ball to a certain height and release it. The ball will fall freely in the vertical direction without tilting or shaking

Inner box material

stainless steel plate

Outer box material

cold rolled steel plate baking treatment

Pressing

1 piece of silica gel foaming pressing

Exhaust fan

it is located at the back of the box, and the exhaust duct is reserved, which is convenient for users to connect to the laboratory high-power exhaust fan

Box door

single door, double door, observation window (toughened glass), cold handle door lock

Upper and lower impact surface

stainless steel plate

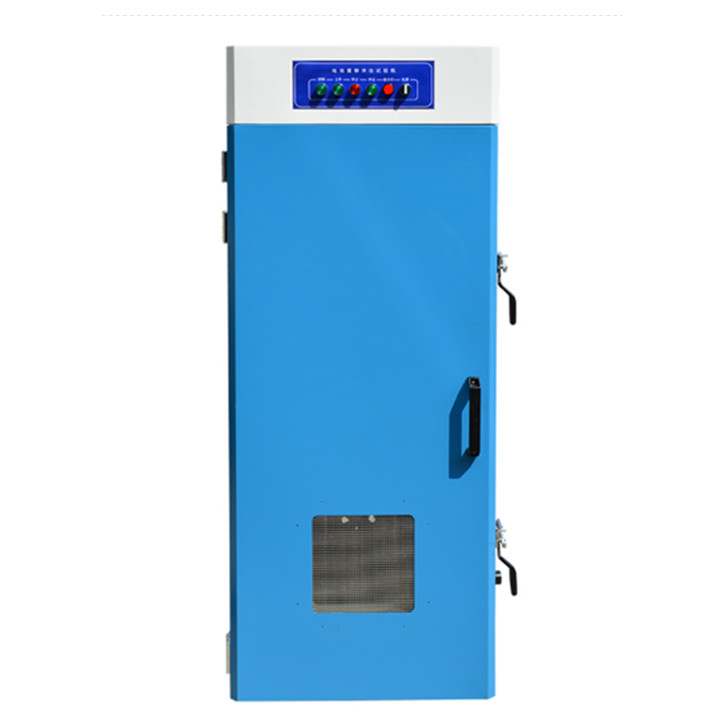

Gravity Impact Tester

Gravity Impact Tester
