Automated Carbon Film Deposition Coater for SEM &EDS Sample Preparation

Automated Carbon Film Deposition Coater for SEM &EDS Sample Preparation

TMAX-JY-ZD01-SEM/EDS Sample Coating

---

Overview:

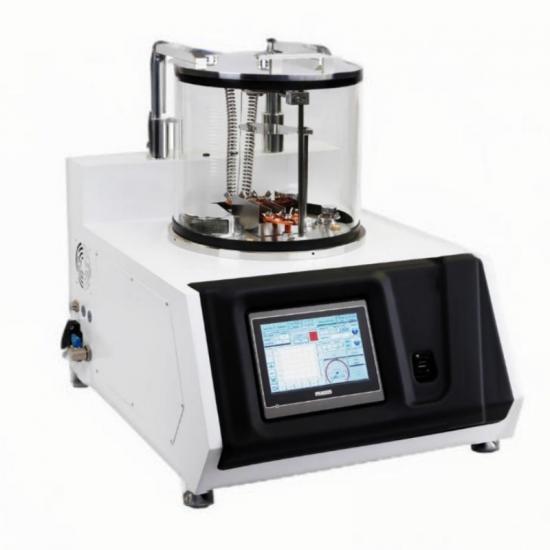

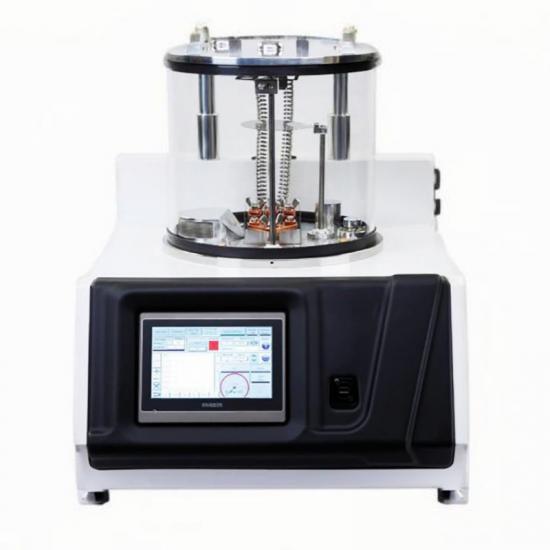

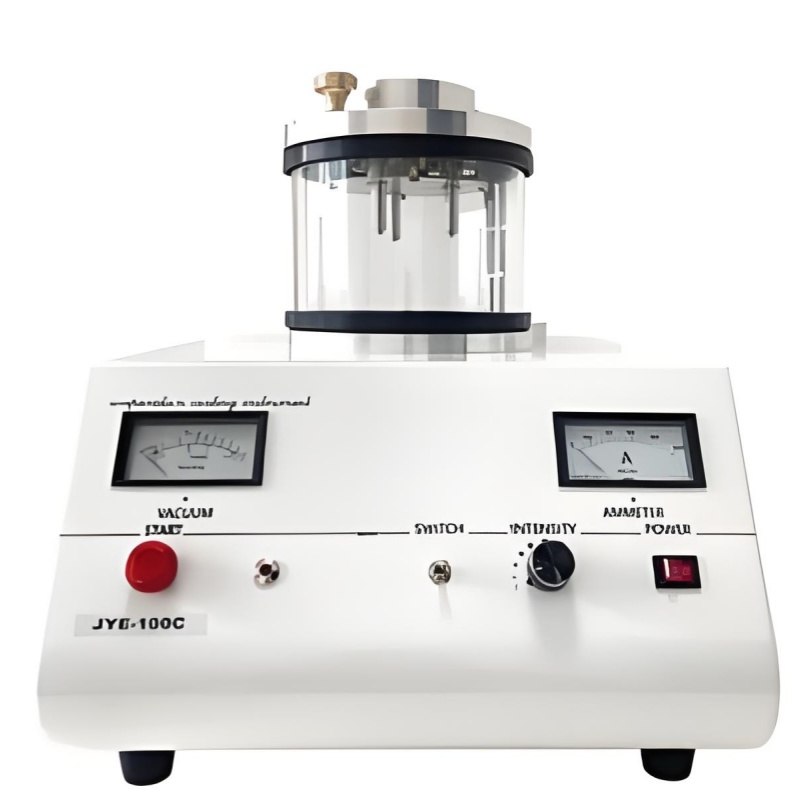

The TMAX-JY-ZD01 compact carbon coater is designed for applying conductive carbon films to SEM (Scanning Electron Microscope) EDS samples. With user-friendly operation and robust construction, it serves as an essential tool for SEM sample preparation.

Key Features:

· Durable Metal Bellows Connection: Vacuum pump tubing utilizes metal bellows for enhanced aesthetics and longevity.

· High-Performance Vacuum System: Features a fast, low-noise rotary vane pump (8 m³/h), ideal for laboratory environments.

· Stable Control System: Equipped with a reliable control board for consistent operation.

· Ergonomic Design: Intuitive control panel layout, positioned on one side for ease of use.

· Service-Friendly Structure: Simple yet robust design with ample space for maintenance.

Technical Specifications:

1. Vacuum Chamber: Ø150 mm × 110 mm (H).

2. Sample Stage: Ø60 mm.

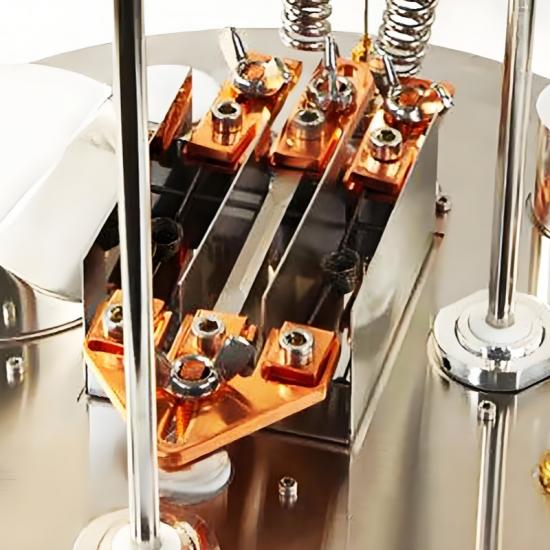

3. Evaporation Method: Carbon thread, 2-stage heating.

4. Vacuum System: Silent direct-drive rotary vane pump (8 m³/h).

5. Vacuum Monitoring: Customized Pirani gauge with analog display for precise measurement.

6. Automatic Venting/Evacuation.

7. Max Evaporation Current: ~100 A.

8. Evaporation Time: Adjustable (0–1 sec).

9. Dimensions: 400 × 450 × 300 mm (L × W × H).

Applications & Advantages:
This excels in SEM/EDS sample coating, offering rapid pumping, low noise, and precise carbon layer deposition. Its compact design and reliability make it suitable for research labs, material science, and quality control where consistent, artifact-free conductive coatings are critical.
Focus on User Needs: Emphasis on ease of use, maintenance accessibility, and lab-friendly noise levels ensures seamless integration into daily workflows
