Item NO.:
TMAX-BY-ZD06Payment:
L/C D/A D/P T/T Western UnionShipping Port:
Xiamen PortLead Time:
5 daysCertificate:
CE Certified

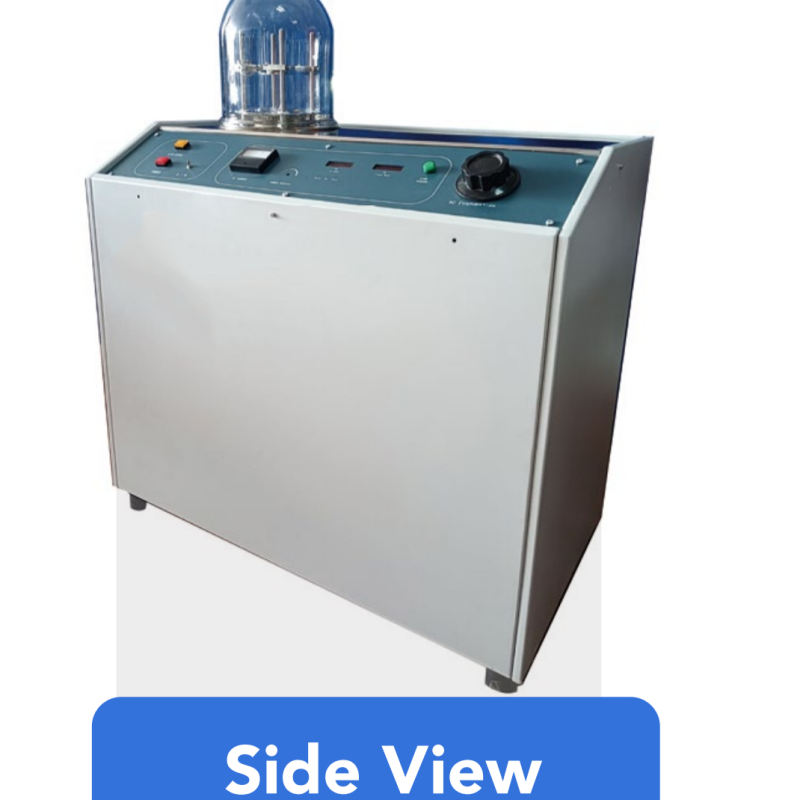

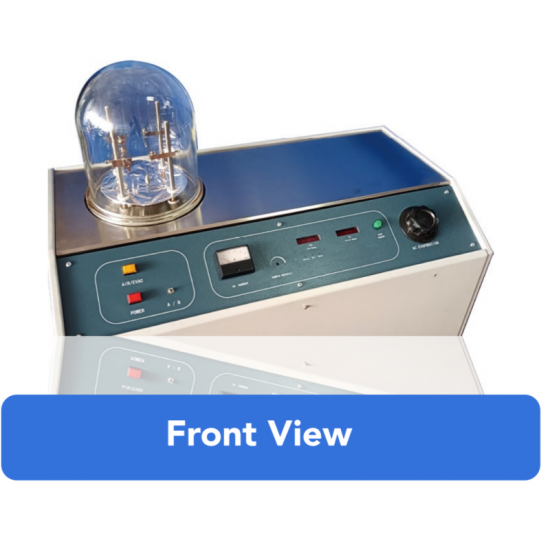

High Vacuum Thermal Evaporation Coater Evaporator System For High-Purity Metal Film Deposition
Model: TMAX-BY-ZD06-High Vacuum Thermal Evaporation
|
Parameter |
Specification |
|
Evaporation Current |
Max 100 A |
|
Evaporation Voltage |
Max 10 V |
|
Heating Power |
1,000 W |
|
Chamber Size |
Ø230 mm × 280 mm (H) |
|
Working Vacuum |
2×10−3 Pa |
|
Ultimate Vacuum |
2×10−4 Pa |
|
Target Materials |
Carbon, gold & other low-melting metals |
|
Pumping System |
Mechanical pump (primary) + Turbo molecular pump (secondary) |
✔ High Vacuum & Fast Deposition
· Advanced compound molecular pump ensures rapid gas evacuation for clean, efficient coating.
· Minimized oil backflow for contamination-free operation.
✔ Reliable & Efficient
· Resistive heating technology for stable evaporation of low-melting metals.
· Simple process with high deposition rates, ideal for lab-scale production.
✔ User-Friendly Design
· Compact chamber accommodates diverse sample sizes (up to Ø230 mm).
· Low maintenance costs for routine use in R&D and academia.
· Thermal Evaporation: Gentle heating avoids high-energy plasma, ideal for sensitive samples (e.g., polymers, biomaterials).
· Sputtering Risk: Energetic ions in sputtering may alter delicate surfaces.
· Higher Deposition Rate: Rapid vaporization of metals (e.g., Au, C) reduces coating time.
· Sputtering Limitation: Slower for low-melting-point materials due to target cooling needs.
· Uniform Conductive Layers: Smooth metal films (e.g., 5–10 nm Au) prevent SEM charging effectively.
· Sputtering Consideration: Sputtered films may exhibit grainier surfaces, affecting conductivity.
· No Gas/Plasma System: Simpler operation and maintenance vs. sputtering’s gas flow/power controls.
· Cost-Effective: Lower power consumption and consumable costs (e.g., replaceable tungsten boats).
· SEM Sample Preparation: Conductive coatings for non-conductive or beam-sensitive materials.
· Thin-Film Research: Rapid prototyping of pure metal films (Au, Ag, Al).
· Industrial R&D: Process optimization for specialty coatings.
Ideal For
· Microscopy Labs – Prevents charging in non-conductive samples.
· Material Scientists – Electrode fabrication & conductivity studies.
· Universities – Teaching tool for vacuum deposition principles.
