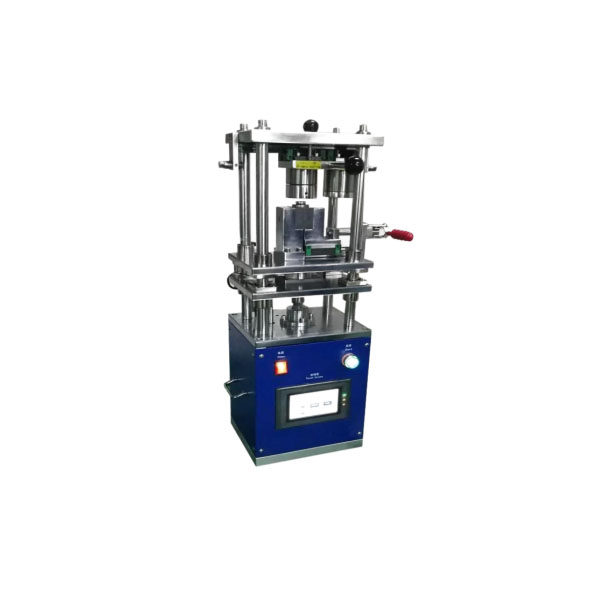

Automatic Cylindrical Battery Crimping Machine

Automatic Cylindrical Battery Crimping Machine

Application:
This Automatic Cylindrical Battery Crimping Machine is designed for automatic crimping sealing of cylindrical batteries, featuring automatic feeding and discharging. It adopts a three-step progressive sealing process (primary, secondary, and tertiary) to ensure smooth sealing edges, excellent air tightness, high dimensional accuracy, high efficiency, and consistent performance.



Key Features:

· PLC touchscreen control for easy parameter setting and high automation level;

· Utilizes a three-step crimping process to achieve smooth sealing edges, excellent air tightness, and precise dimensions with consistent results;

· Precision mold design ensures accurate and reliable sealing, supported by a sturdy steel structure for stable and safe operation;

· Interchangeable mold system allows for sealing of various cylindrical battery types such as 18650, 26650, 21700, etc.;

· Compact and aesthetically designed, easy to operate and maintain, with precise forming capability.



Technical Specifications:

Item	Specification
Sealing Mold	Standard: 18650 series (Optional: other specifications)
Sealing Pressure	Max. 3000Kg
Sealing Accuracy	±0.1mm
Mold Lifespan	＞3 million cycles
Production Capacity	6 pcs/min
Power Supply	220V / 50Hz
Power Consumption	100W
Air Supply	0.5MPa ~ 0.7MPa
Dimensions	L550mm × W400mm × H1250mm
Weight	Approx. 205Kg
