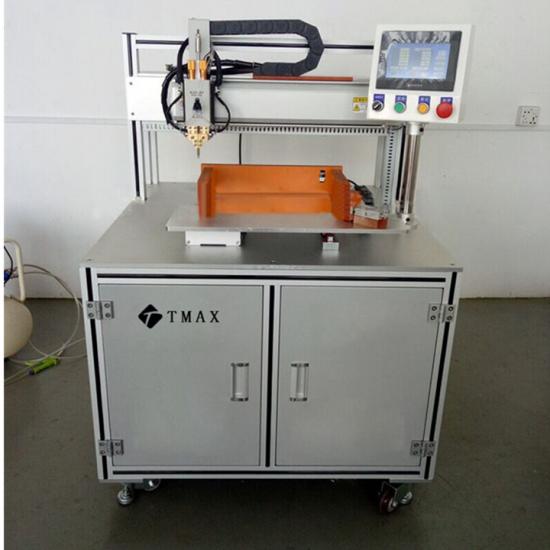

Automatic Single Side Spot Welding Machine For 18650 Cells

Wechat:17720812054

Skype and Whatsapp:+8617720812054

Email:Beata@batterymaking.com


  • Item NO.:

    TMAX-DH-400
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    In stock
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Automatic Single Side Spot Welding Machine For 18650 Cells


This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding.


1.Support break point start, support automatic start and manual start mode conversion.

2.It has a false spot welding and out of spot welding alarm function.

3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.

4.Welding needle replacement forecast reminder.

5.Own welding current monitoring system, real-time monitoring of welding current.



Model

TMAX-DH-400

X-axis travel

400mm

Y-axis travel

400mm

Spot welding speed

0.5s / point; 1800pcs / h

Maximum speed of motor drive

300mm/s

Number of groups for storing files

999 groups

Operating system

Embedded system + man-machine screen

Transmission

Stepper + imported precision linear guide (optional servo + screw)

Power supply

Single-phase  220V ± 10% / 50Hz ± 10%

Power

<1500w

Air supply

0.2 ~ 0.4Mpa

Weight

150KG

Dimensions

About 900mm*900mm*1400mm

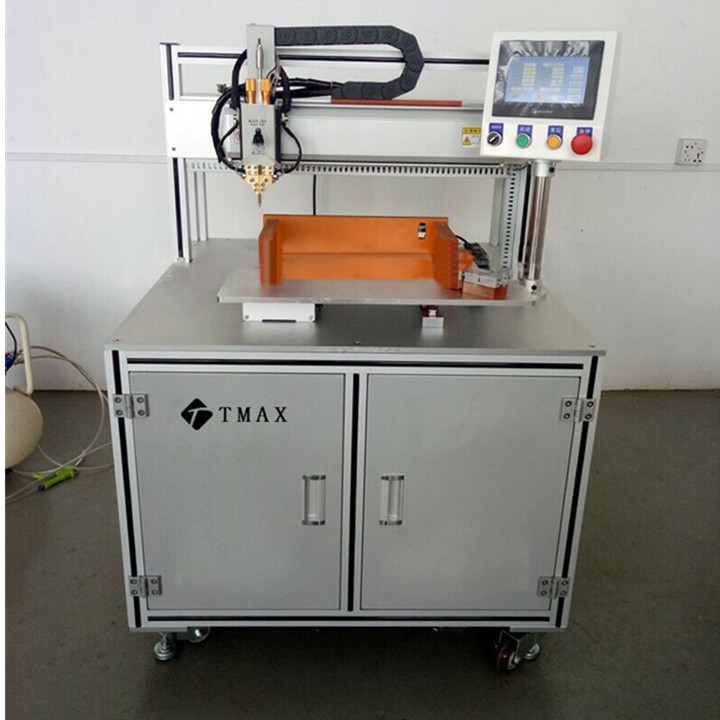

 Single Side Spot Welding Machine

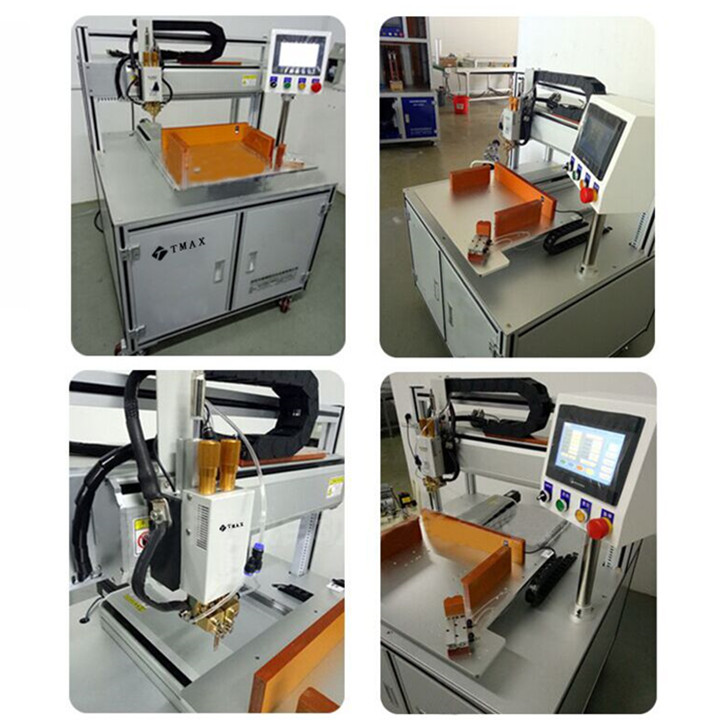

 Single Side Spot Welding Machine


Cylindrical Cell assembly
