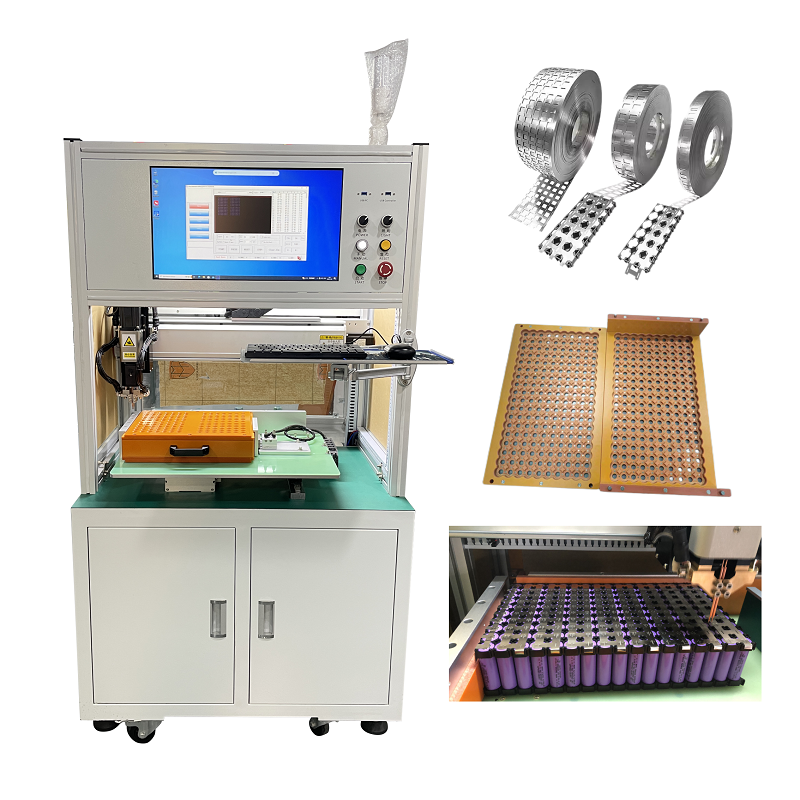

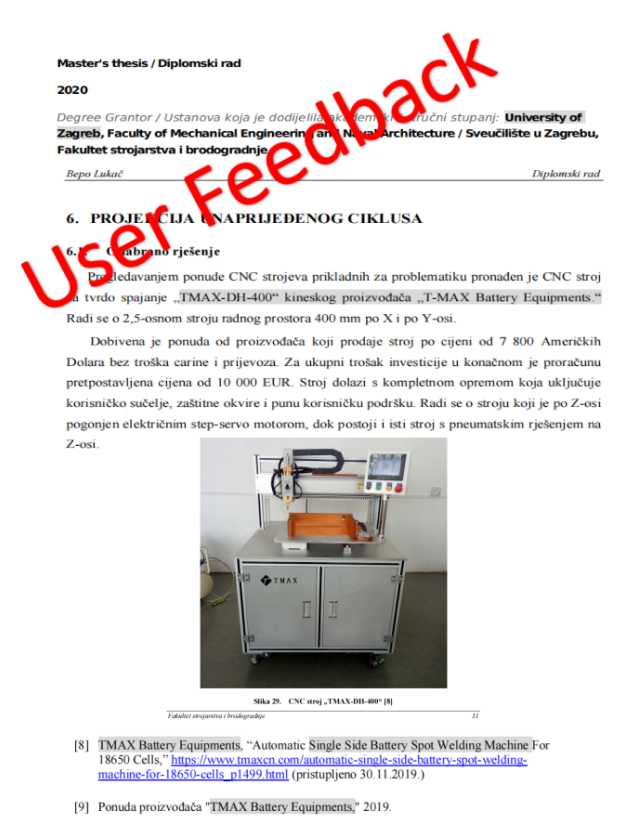

Automatic Single Side Spot Welding Machine with Upper Computer Control for Battery Pack Assembly

Introduction

The Single-sided automatic welding machine is specifically designed for cylindrical lithium batteries, widely used in power batteries (such as electric vehicle batteries) and other cylindrical battery packs. This equipment ensures high-quality welding through efficient welding technology, making it an ideal choice for enhancing battery production efficiency.

Features

1) Automated Spot Welding: The highly automated spot welding process significantly improves production efficiency and reduces labor costs.

2) Data Upload Functionality: Welding data can be uploaded in real-time to the MES system, facilitating production monitoring and management, thereby increasing overall production transparency.

3) Flexible Customization: The Y-axis and Z-axis strokes can be customized according to customer needs, meeting different production environment requirements.

Specifications

Power Supply	AC 220V/380V±10% 50Hz±2Hz
Welding Power Supply Optional	380V inverter DC 5000A/ 380V inveter DC 8000A/ 220V Transisotr 8000A/ 220V transistor 10000A
Welding Mode	Inverter DC
Power Form	Automatic
Welding head Optional	Pneumatic/ Electric/ Rotary welding head
Butt Welding Thickness	1mm +1mm
Flat Welding Thickness	0.03-0.5mm
Output High Power	5000W
Energy Storage Capacitor	10000uf
Output Large Short Circuit Current	8000A
Prewelding Voltage	80.0V-330V adjustable, accuracy 0.5V
Welding Time	1.0ms-20.0ms adjustable, accuracy 0.1ms
Outline Size	350Lx180Wx330H (unit: mm)
Y-axis Travel	500mm
X-axis Travel	400mm
Spot Welding Speed	0.35s/point; 2800pcs / hour
Fast Speed of Motor Drive	1000mm/s
Number of Cores Loaded	X direction: 26 Y direction: 26
Number of file groups that can be stored	99 group
Operating System	Embedded system + man machine interface Equipped with upper computer control

Advantages

1. 10 Inch Touch screen, more convenient to operate and clearer to display

2. The welding head has the function of air cooling or water cooling, which can effectively reduce the influence of the temperature of the spot welding needle on the welding quality.

3. It can store 99 groups of files, which is easy to call and does not need complicated line change and machine adjustment process.

4. One key calibration function for the overall deviation of solder joints, which can be used to calibrate the point position deviation caused by the replacement of solder pins or other reasons.

5. The efficiency of spot welding is higher, and the speed of each spot welding is ≤ 0.35s (according to different speeds of the selected welding machine), and the single-sided spot welding machine can reach 2800 electric cores / hour.

6. The core accessories are imported from Japan and Taiwan, and the accuracy, stability and service life of the whole machine are more than 1 times higher than those of other domestic accessories.

7. The automatic alarm and stop function of welding can continue to spot weld after clearing the fault.

8. The machine has the function of power-off or breakpoint continuation, which can manually adjust the position for spot welding.

9. Welding machine can be selected and matched, and different welding machines can be selected according to different requirements of customers to effectively meet customer needs.

10. Three file programming modes, manual input, array, CAD pattern import, simple and fast response to various complex program editing
