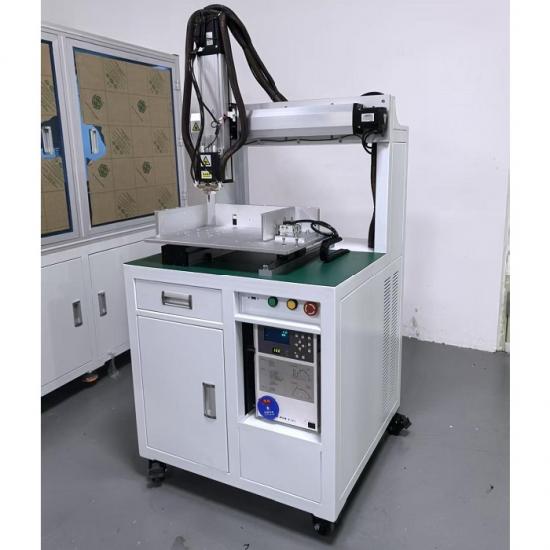

Automatic Small Platform Single Side Spot Welding Machine for Battery Pack Assembly

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com

Item NO.:
TMAX-ZW-D200S
Payment:
L/C,T/T,Western Union, Paypal
Product Origin:
China
Shipping Port:
Xiamen
Lead Time：
5 days
Certificate:
CE ROHS Certificate

Inquire Now

Product Detail

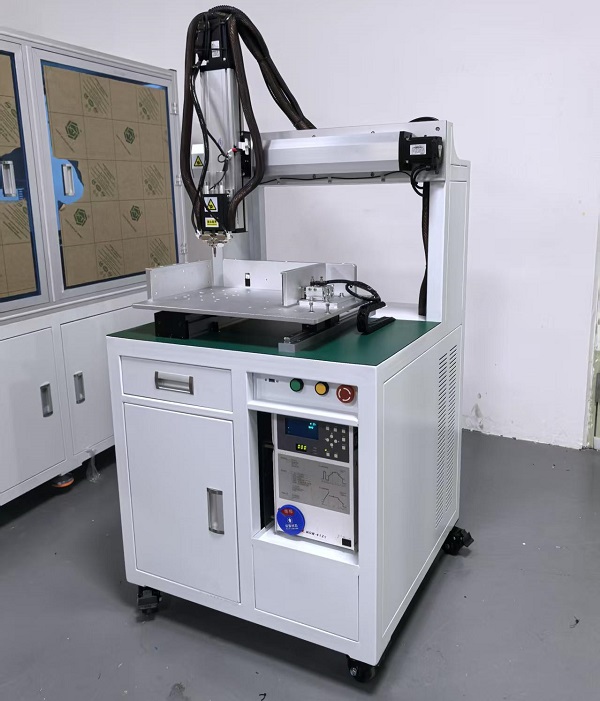

Automatic Small Platform Single Side Spot Welding Machine for Battery Pack Assembly

Application:

Photovoltaic, power battery, NiMH lithium battery and other batteries are connected with nickel alloy strip, aluminum nickel composite strip, wire and guide strip, household electrical parts and guide strip, hardware accessories, copper and silver products, stainless steel peripheral connection, bulb foot welding, electronic parts, all kinds of high and low conductive metal welding, etc.

FEATURE

1) Induct the load voltage, control the voltage in the feedback mode, and realize high-quality welding.

2) Power on mode of pre heat and main heat: preheat before welding to ensure stable welding quality.

3) Keep the continuity of energy density, short welding time, reduce the deformation and discoloration of base metal. (the welding time is controlled in microseconds, and the mode of continuous output)

4) Easy to change from low current to high current, suitable for precision welding.

5) The upper and lower limits of current can be set to judge whether the welding quality is good or not, which is suitable for the welding automation platform.

6) The welding current will rise with the power on time to ensure the welding effect.

7) Stable control system

8) High configuration regulating device

9) High precision working procedure

10) High cost performance of products

SPECIFICATION

Y-axis travel	300mm
X-axis travel	400mm
Z-axis travel	140mm
Maximum spot welding rate	0.35S/point; 3500 PCS/hour
Maximum speed of motor transmission	500mm/S
Maximum Load Cell (18650)	Y direction: 12 * X direction: 18
Number of storable file groups	1000 sets
Operating system	Embedded system+human-machine interface&optional industrial control computer
Transmission method	Precision screw with guide rail
Head drive mode	servo motor
Cooling method	air cooling
Welding nickel strip thickness	Between 0.1mm-0.5mm, a slotted and bumped is required for thickness above 0.2mm
Transistor welding machine	Transistor welding machine 8000A/10000A
Overall dimensions	700L700W1250H
Repetitive positioning accuracy	±0.02mm
Horizontal load-bearing capacity	15KG (according to customer requirements)
